Scroll down the page for prices & model #"s, or to order a specific model.
Series # WA6

FEATURES
APPLICATIONS
MATERIALS OF CONSTRUCTION

Adapter : Cast Iron
Casing : Cast Iron
Diffuser : Cast Iron
Impeller : Noryl Plastic
Shaft : 303 Stainless Steel
Shaft Seal : Carbon-Ceramic / S. Steel / Buna-N

MAXIMUM OPERATING CONDITIONS
TEMPERATURE (For Standard Buna-N Seal) : 225F (107C)
INLET PRESSURE : 100 PSI (690 kpa)
CASING WORKING PRESSURE : 200 PSI (1379kpa)
VISCOSITY : 200 SSU

APPLICATIONS

• Lawn Sprinkling
• Pressure Boosting
• Sprinkler Systems
• Light Irrigation
• Dewatering clean liquids
• Transfer from underground storageFEATURES

• Fast Priming pump stays primed. Flapper and check valves on suction pipe are not required, but are recommended.
• Non-overloading performance at all catalog ratings.
• motors.
• Leak Proof mechanical shaft seal - self adjusting.
• Cast Iron Casing with suction, discharge, prime, vacuum gauge and drain tappings.
• All Bronze or All Iron construction available.

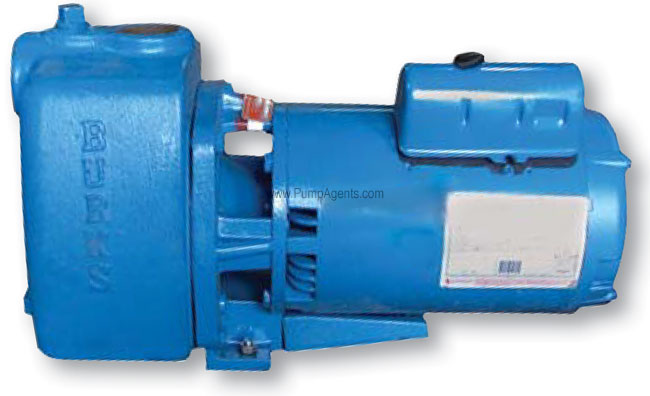

Burks Pump 10WA6, 15WA6, 20WA6, 30WA6, 310WA6, 315WA6, 320WA6, 330WA6
Series # WA6
Model # Description Price / ea. ORDER CAN SHIP
10WA6

10WA6 information Datasheet
Catalog # 10WA6, Self Priming Centrifugal Pump and Motor unit. Bronze Fitted Cast Iron Construction w/ Plastic Impeller. Close Coupled to a 1 Horsepower, 3450 RPM, 115/230 Volts, 1 Phase Motor. Ports are 1-1/2 Inches NPT Inlet, 1-1/2 Inches NPT Outlet. $ 1101.60 Qty. Same Day
(1 in stock)
15WA6

15WA6 information Datasheet
Catalog # 15WA6, Self Priming Centrifugal Pump and Motor unit. Bronze Fitted Cast Iron Construction w/ Plastic Impeller. Close Coupled to a 1-1/2 Horsepower, 3450 RPM, 115/230 Volts, 1 Phase Motor. Ports are 1-1/2 Inches NPT Inlet, 1-1/2 Inches NPT Outlet. $ 1173.51 Qty. Same Day
(1 in stock)
20WA6

20WA6 information Datasheet
Catalog # 20WA6, Self Priming Centrifugal Pump and Motor unit. Bronze Fitted Cast Iron Construction w/ Plastic Impeller. Close Coupled to a 2 Horsepower, 3450 RPM, 115/230 Volts, 1 Phase Motor. Ports are 1-1/2 Inches NPT Inlet, 1-1/2 Inches NPT Outlet. $ 1842.12 Qty. Same Day
(1 in stock)
30WA6

30WA6 information Datasheet
Catalog # 30WA6, Self Priming Centrifugal Pump and Motor unit. Bronze Fitted Cast Iron Construction w/ Plastic Impeller. Close Coupled to a 3 Horsepower, 3450 RPM, 115/230 Volts, 1 Phase Motor. Ports are 1-1/2 Inches NPT Inlet, 1-1/2 Inches NPT Outlet. $ 1533.06 Qty. Same Day
(1 in stock)
310WA6

310WA6 information Datasheet
Catalog # 310WA6, Self Priming Centrifugal Pump and Motor unit. Bronze Fitted Cast Iron Construction w/ Plastic Impeller. Close Coupled to a 1 Horsepower, 3450 RPM, 230/460 Volts, 3 Phase Motor. Ports are 1-1/2 Inches NPT Inlet, 1-1/2 Inches NPT Outlet. $ 1116.90 Qty. Same Day
(1 in stock)
315WA6

315WA6 information Datasheet
Catalog # 315WA6, Self Priming Centrifugal Pump and Motor unit. Bronze Fitted Cast Iron Construction w/ Plastic Impeller. Close Coupled to a 1-1/2 Horsepower, 3450 RPM, 230/460 Volts, 3 Phase Motor. Ports are 1-1/2 Inches NPT Inlet, 1-1/2 Inches NPT Outlet. $ 1207.17 Qty. Same Day
(1 in stock)
320WA6

320WA6 information Datasheet
Catalog # 320WA6, Self Priming Centrifugal Pump and Motor unit. Bronze Fitted Cast Iron Construction w/ Plastic Impeller. Close Coupled to a 2 Horsepower, 3450 RPM, 230/460 Volts, 3 Phase Motor. Ports are 1-1/2 Inches NPT Inlet, 1-1/2 Inches NPT Outlet. $ 1692.18 Qty. Same Day
(1 in stock)
330WA6

330WA6 information Datasheet
Catalog # 330WA6, Self Priming Centrifugal Pump and Motor unit. Bronze Fitted Cast Iron Construction w/ Plastic Impeller. Close Coupled to a 3 Horsepower, 3450 RPM, 230/460 Volts, 3 Phase Motor. Ports are 1-1/2 Inches NPT Inlet, 1-1/2 Inches NPT Outlet. $ 1780.92 Qty. Same Day
(1 in stock)


Parts and Accessories for Burks model 330WA6
Model # Description Price / ea. ORDER CAN SHIP
SK8514-8988 Catalog # SK8514-8988, Seal Kit, BUNA Nitrile for all WA6 Series Pumps. Includes P/N # 8514-1 - Mechanical Seal - Buna N, P/N # 8988 - Casing Gasket, P/N # 04231 - Suction Sleeve Buna N $ 119.34 Qty. Same Day
(2 in stock)
Impeller :
21363 Catalog # 21363, Impeller (All sizes) $ 239.30 Qty. 4 Weeks
(out of stock)
Shaft Seal :
08514 Catalog # 08514, Mech Seal .625" $ 73.63 Qty. Same Day
(20 in stock)
Casing frozen or cracked ? New Pump Casing :
This is the part with the Inlet and Outlet ports
21123 Catalog # 21123, Case-Iron $ 1529.40 Qty. Same Day
(1 in stock)
Parts and Related Accessories :
8988 Catalog # 8988, Gasket $ 2.82 Qty. 4 Weeks
(out of stock)
