Scroll down the page for prices & model #"s, or to order a specific model.

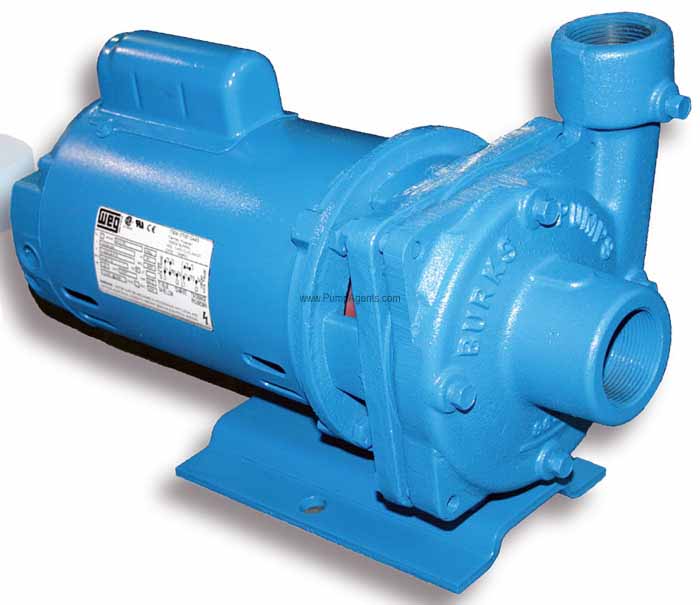

Series # G5-1-1/4-AB All Bronze
Burks Pumps

• Product Data Sheet (Performance & Dimensions)

FEATURES


APPLICATIONS
MATERIALS OF CONSTRUCTION Adapter : Bronze Casing : Bronze Impeller : Bronze Shaft : #303 Stainless Steel Casing Wear Ring : Bronze Shaft Seal : Carbon-Ceramic / S. Steel / Buna-N MAXIMUM OPERATING CONDITIONS TEMPERATURE (For Standard Buna-N Seal) : 225°F (107°C) INLET PRESSURE : 100 PSI (690 kpa) CASING WORKING PRESSURE : 200 PSI (1379kpa) VISCOSITY : 200 SSU FEATURES • FOUR POSITION CASING Discharge can be located in any of four positions. Casing is close grain iron of 30,000 psi minimum tensile strength. Back pull-out design eliminates the need to disturb piping should the pump ever require service - the casing stays in the line. • REPLACEABLE CASING WEAR RING Prevents wear on casing and is easy to replace. • EASY TO SERVICE Taking out only 4 cap screws allows removal of pumping assembly without disturbing piping. • ENCLOSED BRONZE IMPELLER Enclosed bronze impeller is of latest hydraulic design for maximum efficiency. It is balanced for vibration free operation and threaded onto stainless steel motor shaft. • MECHANICAL SHAFT SEAL Standard self-adjusting shaft seal for temperatures to 225°F (107°C) and pressures to 150 psi (1034kpa). Ceramic seat and carbon seal face for long trouble-free service. Special seals are available for higher temperatures and fluids other than water. • MOTORS Standard pump motors have open drip proof construction and are rated with jet pump service factors for continuous duty operation. Motors are 56 frame size with NEMA standard mounting flange, one piece threaded stainless steel shaft and ball/ball bearing construction. • FACTORY TESTED After careful assembly and inspection, EVERY pump is factory tested and will meet Hydraulic Institute standards.

Burks Pump SK8514-21333, 3G5-1-1/4-AB, 5G5-1-1/4-AB, 7G5-1-1/4-AB, 10G5-1-1/4-AB, 15G5-1-1/4-AB, 20G5-1-1/4-AB, 33G5-1-1/4-AB, 35G5-1-1/4-AB, 37G5-1-1/4-AB, 310G5-1-1/4-AB, 315G5-1-1/4-AB, 320G5-1-1/4-AB, 330G5-1-1/4-AB

Available Series # G5-1-1/4-AB All Bronze
Model #	Description	Price / ea.	ORDER	CAN SHIP
SK8514-21333 SK851421333	Catalog # SK8514-21333, Seal Kit for all GA5-1,GA5-1-1-/4,DF4-1-1-/4,G5-1-1/4,GB5-1-1/2F Series. Includes P/N # 8514 - Mechanical Seal - Buna N, P/N # 21333 - Casing O-Ring - Buna N, P/N # 21182 - Impeller Cap Screw, P/N # 21181-C - Impeller Cap Washer	$ 49.00	Qty.	Same Day (2 in stock)
3G5-1-1/4-AB 3G51-1/4AB Datasheet	Catalog # 3G5-1-1/4-AB, All BRONZE Construction. Close Coupled to a 1/3 Horsepower, 3450 RPM, 115/230 Volts, 1 Phase Motor. Ports are 1-1/2 Inches NPT Inlet, 1-1/4 Inches NPT Outlet. Impeller Diameter is 3.25 Inches.	$ 759.00	Qty.	2 Weeks (out of stock)
5G5-1-1/4-AB 5G51-1/4AB Datasheet	Catalog # 5G5-1-1/4-AB, All BRONZE Construction. Close Coupled to a 1/2 Horsepower, 3450 RPM, 115/230 Volts, 1 Phase Motor. Ports are 1-1/2 Inches NPT Inlet, 1-1/4 Inches NPT Outlet. Impeller Diameter is 3.63 Inches.	$ 783.00	Qty.	2 Weeks (out of stock)
7G5-1-1/4-AB 7G51-1/4AB Datasheet	Catalog # 7G5-1-1/4-AB, All BRONZE Construction. Close Coupled to a 3/4 Horsepower, 3450 RPM, 115/230 Volts, 1 Phase Motor. Ports are 1-1/2 Inches NPT Inlet, 1-1/4 Inches NPT Outlet. Impeller Diameter is 4 Inches.	$ 806.00	Qty.	2 Weeks (out of stock)
10G5-1-1/4-AB 10G51-1/4AB Datasheet	Catalog # 10G5-1-1/4-AB, All BRONZE Construction. Close Coupled to a 1 Horsepower, 3450 RPM, 115/230 Volts, 1 Phase Motor. Ports are 1-1/2 Inches NPT Inlet, 1-1/4 Inches NPT Outlet. Impeller Diameter is 4.25 Inches.	$ 845.00	Qty.	2 Weeks (out of stock)
15G5-1-1/4-AB 15G51-1/4AB Datasheet	Catalog # 15G5-1-1/4-AB, All BRONZE Construction. Close Coupled to a 1-1/2 Horsepower, 3450 RPM, 115/230 Volts, 1 Phase Motor. Ports are 1-1/2 Inches NPT Inlet, 1-1/4 Inches NPT Outlet. Impeller Diameter is 4.75 Inches.	$ 1023.00	Qty.	2 Weeks (out of stock)
20G5-1-1/4-AB 20G51-1/4AB Datasheet	Catalog # 20G5-1-1/4-AB, All BRONZE Construction. Close Coupled to a 2 Horsepower, 3450 RPM, 115/230 Volts, 1 Phase Motor. Ports are 1-1/2 Inches NPT Inlet, 1-1/4 Inches NPT Outlet. Impeller Diameter is 4.97 Inches.	$ 1115.00	Qty.	2 Weeks (out of stock)
33G5-1-1/4-AB 33G51-1/4AB Datasheet	Catalog # 33G5-1-1/4-AB, All BRONZE Construction. Close Coupled to a 1/3 Horsepower, 3450 RPM, 230/460 Volts, 3 Phase Motor. Ports are 1-1/2 Inches NPT Inlet, 1-1/4 Inches NPT Outlet. Impeller Diameter is 3.25 Inches.	$ 838.00	Qty.	2 Weeks (out of stock)
35G5-1-1/4-AB 35G51-1/4AB Datasheet	Catalog # 35G5-1-1/4-AB, All BRONZE Construction. Close Coupled to a 1/2 Horsepower, 3450 RPM, 230/460 Volts, 3 Phase Motor. Ports are 1-1/2 Inches NPT Inlet, 1-1/4 Inches NPT Outlet. Impeller Diameter is 3.63 Inches.	$ 864.00	Qty.	2 Weeks (out of stock)
37G5-1-1/4-AB 37G51-1/4AB Datasheet	Catalog # 37G5-1-1/4-AB, All BRONZE Construction. Close Coupled to a 3/4 Horsepower, 3450 RPM, 230/460 Volts, 3 Phase Motor. Ports are 1-1/2 Inches NPT Inlet, 1-1/4 Inches NPT Outlet. Impeller Diameter is 4 Inches.	$ 874.00	Qty.	2 Weeks (out of stock)
310G5-1-1/4-AB 310G51-1/4AB Datasheet	Catalog # 310G5-1-1/4-AB, All BRONZE Construction. Close Coupled to a 1 Horsepower, 3450 RPM, 230/460 Volts, 3 Phase Motor. Ports are 1-1/2 Inches NPT Inlet, 1-1/4 Inches NPT Outlet. Impeller Diameter is 4.25 Inches.	$ 881.00	Qty.	2 Weeks (out of stock)
315G5-1-1/4-AB 315G51-1/4AB Datasheet	Catalog # 315G5-1-1/4-AB, All BRONZE Construction. Close Coupled to a 1-1/2 Horsepower, 3450 RPM, 230/460 Volts, 3 Phase Motor. Ports are 1-1/2 Inches NPT Inlet, 1-1/4 Inches NPT Outlet. Impeller Diameter is 4.75 Inches.	$ 991.00	Qty.	2 Weeks (out of stock)
320G5-1-1/4-AB 320G51-1/4AB Datasheet	Catalog # 320G5-1-1/4-AB, All BRONZE Construction. Close Coupled to a 2 Horsepower, 3450 RPM, 230/460 Volts, 3 Phase Motor. Ports are 1-1/2 Inches NPT Inlet, 1-1/4 Inches NPT Outlet. Impeller Diameter is 4.97 Inches.	$ 1023.00	Qty.	2 Weeks (out of stock)
330G5-1-1/4-AB 330G51-1/4AB Datasheet	Catalog # 330G5-1-1/4-AB, All BRONZE Construction. Close Coupled to a 3 Horsepower, 3450 RPM, 230/460 Volts, 3 Phase Motor. Ports are 1-1/2 Inches NPT Inlet, 1-1/4 Inches NPT Outlet.	$ 1079.00	Qty.	2 Weeks (out of stock)
