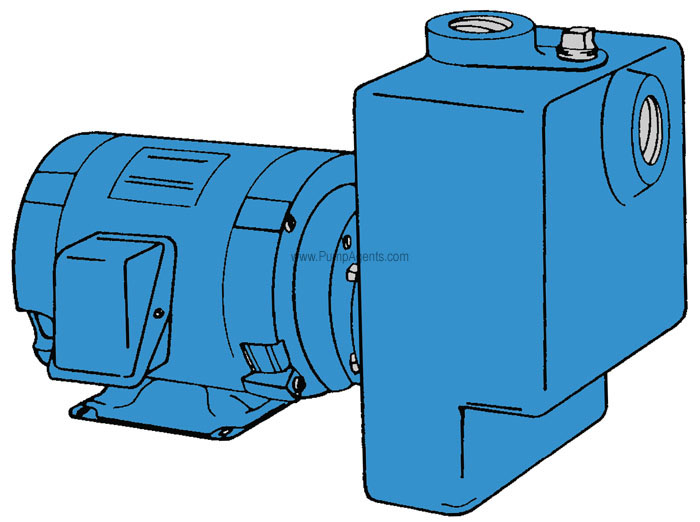

Series # WG6-2
Burks Pumps
| FEATURES
|
|
|
|
|
|
APPLICATIONS |
MATERIALS OF CONSTRUCTION
Adapter : Cast Iron
Casing : Cast Iron
Casing wear ring : Bronze
Impeller : Bronze
Shaft : 316 Stainless Steel
Shaft Sleeve : Bronze
Shaft Seal : Carbon-Ceramic / S. Steel / Buna-N
MAXIMUM OPERATING CONDITIONS
TEMPERATURE (For Standard Buna-N Seal) : 225°F (107°C)
INLET PRESSURE : 100 PSI (690 kpa)
CASING WORKING PRESSURE : 200 PSI (1379kpa)
VISCOSITY : 200 SSU
FEATURES
• CASING
Casing is close grain iron of 30,000 psi minimum tensile strength. Back pull-out design eliminates the need to disturb piping should the pump ever require service - the casing stays in the line.
• ENCLOSED BRONZE IMPELLER
Enclosed bronze impeller is of latest hydraulic design for maximum efficiency. It is balanced for vibration free operation and threaded onto stainless steel motor shaft.
• MECHANICAL SHAFT SEAL
Standard self-adjusting shaft seal for temperatures to 225°F (107°C) and pressures to 150 psi (1034kpa). Ceramic seat and carbon seal face for long trouble-free service. Special seals are available for higher temperatures and fluids other than water.
• BRONZE SHAFT SLEEVE
Gasketed and keyed hook-type sleeve protects shaft from wear and corrosion in seal area.
• MOTORS
JM Type motors have NEMA standard mounting flange, extended steel shaft and dual bearings. These motors offer the advantage of quiet operation, controlled shaft deflection for longer seal life, and bearings sized to provide good service life. All motors are supplied by manufactures with national field service facilities.
• FACTORY TESTED
After careful assembly and inspection, EVERY pump is factory tested and will meet Hydraulic Institute standards.
|
|
|
|
|
Series # WG6-2 |
| Model
# |
Description |
Price
/ ea. |
ORDER |
CAN SHIP |
|
