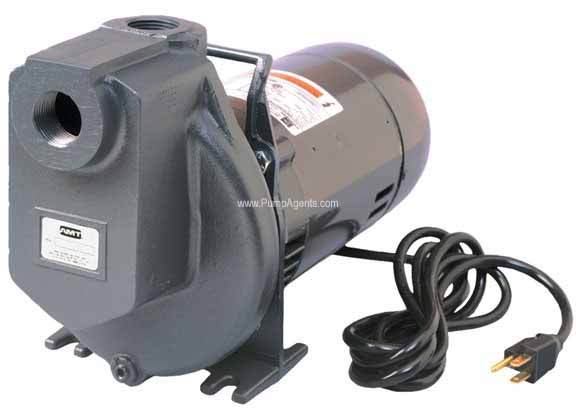

AMT # 4292-96 Self-Priming Aluminum Utility Pump and Motor 1/2 HP
AMT # 4292-96
AMT catalog # 4292-96, Self-Priming Aluminum Utility Pump and Motor unit. Aluminum Construction with Aluminum Impeller and Buna-N/SS Shaft Seal. Pump is Close Coupled to a 1/2 Horsepower, 115 VAC Volts, ODP (Open Drip Proof), NEMA 56J Frame Electric Motor..
Price : $ 408.24
Product Information :
Parts Page (click here)
Product Manual PDF (view)The AMT 4292-96 is a Self-Priming Aluminum Utility Pump and Motor unit with a Aluminum Impeller, Buna-N/SS Shaft Seal, coupled to a 1/2 Horsepower, 115 VAC Volts, ODP Open Drip Proof, NEMA 56J frame electric Motor. This self-priming centrifugal pump is designed to handle many water transfer services such as storm draining, light irrigation, emergency water supply, swimming pool and spa tub draining, etc. Pump can self-prime to 6 feet suction lift (with casing full of water), handling clear to sediment laden liquids containing solids up to 1/8 in diameter. Handles liquids from 40 degrees F to 180 degrees F (4 degrees to 82 degrees C). Pump is supplied with two 1 NPT x 3/4 garden hose adapters. For use with nonflammable, non-abrasive liquids compatible with pump component materials.
Features :
Product Specs :
Product Specs :
Cast Aluminum Construction
Buna-N Mechanical Seal and O-Ring
1˝ NPT Suction and Discharge Ports
Two Garden Hose Adapters and Carry Handle Included
1/2 HP NEMA 56J Open Drip Proof Motor with 8 Ft. 115 VAC Cord
Maximum Suction Lift 6 Ft
Parts and Accessories for AMT model 4292-96
Seal Kit :
Catalog # 4292-300-90, Seal and Oring Kit Buna
Price: $ 35.64
Impeller :
Catalog # 2104-024-09, 2P390 Impeller Xa 1/3 and 1/2HP Mach, Aluminum
Price: $ 56.70
Shaft Seal :
Catalog # 1640-161-90, Mechanical Seal, Buna-N/Carbon/Ceramic, Type 16, size 5/8 Inch
Price: $ 24.30
Casing frozen or cracked ? New Pump Casing :
Catalog # 2218-005-01, Casing Xa 1X1 S-Prm 1-PIECE Mach, Aluminum
Price: $ 213.84
Motor :
Catalog # 1626-009-00, Motor, 1/2 Horsepower, 115/230 Volts, 1 Phase, ODP Open Drip Proof, 60/50 Hz, Nema 56J Frame, replacement electric jet pump motor only (pump is not included)
Price: $ 322.38
Applications
The AMT 429296 Model 429296 is designed to be portable and handle many water transfer services including storm drainage, emergency water supply, wash down and pool/spa tub draining. Selfcleaning, semiopen impeller handles solids up to 1/8 Inch diameter.
