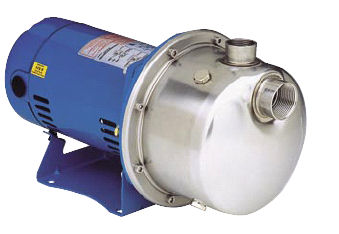

LB Series Booster Pumps

Goulds Pump LB0535, LB0535TE, LB0712, LB0712TE, LB0735, LB0735TE, LB1012, LB1012TE, LB1035, LB1035TE


Goulds # LB0535

Goulds catalog # LB0535, 304 Stainless Steel w/ Plastic Impeller. 1/2 Horsepower, 3500 RPM, Three-Phase, 208-230/460 Volt, ODP Motor. Impeller Diameter is 4.5 Inches.

Price : $ 680.13

Qty :

1 Week (when ordered)

Goulds # LB0535TE

Goulds catalog # LB0535TE, 304 Stainless Steel w/ Plastic Impeller. 1/2 Horsepower, 3500 RPM, Three-Phase, 208-230/460 Volt, TEFC Motor. Impeller Diameter is 4.5 Inches.

Price : $ 680.13

Qty :

1 Week (when ordered)


Goulds # LB0712

Goulds catalog # LB0712, 304 Stainless Steel w/ Plastic Impeller. 3/4 Horsepower, 3500 RPM, Single-Phase, 115/230 Volt, ODP Motor. Impeller Diameter is 5 Inches.

Price : $ 655.38

Qty :

Next Day (3 in stock)

Goulds # LB0712TE

Goulds catalog # LB0712TE, 304 Stainless Steel w/ Plastic Impeller. 3/4 Horsepower, 3500 RPM, Single-Phase, 115/230 Volt, TEFC Motor. Impeller Diameter is 5 Inches.

Price : $ 768.24

Qty :

1 Week (when ordered)


Goulds # LB0735

Goulds catalog # LB0735, 304 Stainless Steel w/ Plastic Impeller. 3/4 Horsepower, 3500 RPM, Three-Phase, 208-230/460 Volt, ODP Motor. Impeller Diameter is 5 Inches.

Price : $ 700.92

Qty :

1 Week (when ordered)

Goulds # LB0735TE

Goulds catalog # LB0735TE, 304 Stainless Steel w/ Plastic Impeller. 3/4 Horsepower, 3500 RPM, Three-Phase, 208-230/460 Volt, TEFC Motor. Impeller Diameter is 5 Inches.

Price : $ 743.49

Qty :

1 Week (when ordered)


Goulds # LB1012

Goulds catalog # LB1012, 304 Stainless Steel w/ Plastic Impeller. 1 Horsepower, 3500 RPM, Single-Phase, 115/230 Volt, ODP Motor. Impeller Diameter is 5.25 Inches.

Price : $ 684.09

Qty :

1 Week (when ordered)

Goulds # LB1012TE

Goulds catalog # LB1012TE, 304 Stainless Steel w/ Plastic Impeller. 1 Horsepower, 3500 RPM, Single-Phase, 115/230 Volt, TEFC Motor. Impeller Diameter is 5.25 Inches.

Price : $ 684.09

Qty :

1 Week (when ordered)


Goulds # LB1035

Goulds catalog # LB1035, 304 Stainless Steel w/ Plastic Impeller. 1 Horsepower, 3500 RPM, Three-Phase, 208-230/460 Volt, ODP Motor. Impeller Diameter is 5.25 Inches.

Price : $ 728.64

Qty :

1 Week (when ordered)

Goulds # LB1035TE

Goulds catalog # LB1035TE, 304 Stainless Steel w/ Plastic Impeller. 1 Horsepower, 3500 RPM, Three-Phase, 208-230/460 Volt, TEFC Motor. Impeller Diameter is 5.25 Inches.

Price : $ 771.21

Qty :

1 Week (when ordered)




Features

Pump Body:
304 Stainless Steel
Impeller:
Composite Plastic
Shaft:
304 Stainless Steel
Shaft Seal:
Standard Mech. Seal is EPR/Carbon/Ceramic/S.S, Casing "O"-Ring is EPR.
Port Size:
1-1/4" NPT Inlet x 1" NPT Discharge
Motor / Amp Draw:
1/2 HP to 1 HP, 115/230 Volt single phase, or 208-230/460 Volt 3 phase. NEMA standard open dripproof, or totally enclosed fan cooled.

Applications

High Head Water Boosting The LB booster pump provides an economical alternative for small booster sets with flow requirements up to 18 GPM and heads up to 190 feet. Applications include R/O systems, chillers and potable water boosting.Warning This pump should not be used with liquids containing caustics/ detergents, hydrocarbons/petroleum, or acids. For residential use only.
