Parts for March Pump model # LC-2CP

Item 3
(on image above)

Part # 0125-0007-1000

Seal (LC)

$ 0.93 / each

Item 4
(on image above)

Part # 0125-0083-0100

Drive Magnet Assy (.250 Bore)

$ 34.69 / each

Item 5
(on image above)

Part # 0125-0071-1000

Gasket (Mtr Bkt) 2-5/16ID x 1/16Thk

$ 2.89 / each

Item 5a
(on image above)

Part # 0125-0121-1000

O-Ring (-035) 1/16CS x 2-1/4ID x 2-3/8OD

$ 3.47 / each

Item 7
(on image above)

Part # 0125-0057-0100

Housing (Rear) & Plug Assy LC

$ 23.12 / each

Item 8
(on image above)

Part # 0125-0055-0100

Impeller (Molded) 1.812 Dia

$ 20.81 / each

Item 9
(on image above)

Part # 0125-0051-1000

Bracket (Mtr) w/Inserts

$ 16.19 / each

Item 10
(on image above)

Part # 0130-0028-1000

Thrust Washer (Front)

$ 4.62 / each

Item 11
(on image above)

Part # 0125-0065-1000

O-Ring (-136) 3/32CS x 2ID x 2-3/16OD

$ 3.47 / each

Item 12
(on image above)

Part # 0125-0056-1000

Cover (Hsg) 3/8FPT x 3/4MPT Inlet

$ 8.67 / each

Item 13
(on image above)

Part # 0115-0062-1000

Screw (Thd-Forming) Hi-Low Pan Head Phillips #7-19

$ 0.58 / each

Item 14
(on image above)

Part # 0125-0060-1000

Base (Mtg)

$ 9.25 / each

Item 14a
(on image above)

Part # 0125-0113-0100

Base (Mtg) w/Rubber Grommets

$ 13.88 / each

Item 15
(on image above)

Part # 0410-0078-1000

Screw (Thd-Forming) Hi-Low Pan Head Phillips #8-18

$ 0.62 / each

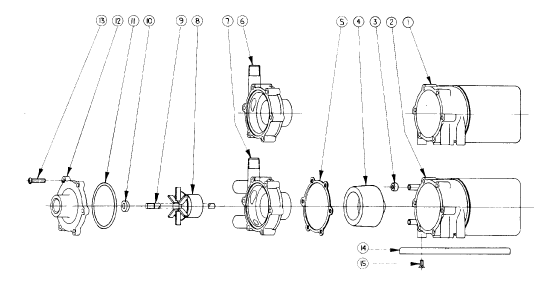

March Pump model LC-2CP Parts
