March Pump model BC-3CP Parts

PARTS LIST for March Pump model # BC-3CP Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

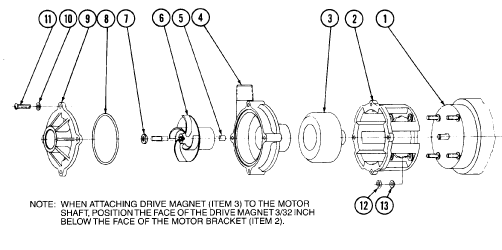

Blowup of BC-3CP


Item 1
(on image above)

Part # 0130-0048-1000

Motor (BC) 115V 50/60HZ 3500RPM BB (w/Base) 36Co

$ 156.09 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (1 in stock)


Item 1b
(on image above)

Part # 0130-0049-1000

Motor (BC) 230V 50/60HZ 3500RPM BB (w/Base) 72Co

$ 323.75 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (1 in stock)


Item 3
(on image above)

Part # 0130-0043-0200

Drive Magnet Assy (.312 Bore)

$ 41.62 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (1 in stock)


Item 4
(on image above)

Part # 0130-0018-1000

Housing (Rear) 1/2MPT Outlet

$ 10.98 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (3 in stock)


Item 5
(on image above)

Part # 0130-0024-1000

Shaft

$ 11.56 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (19 in stock)


Item 6
(on image above)

Part # 0130-0069-0200

Impeller (Encaps) 2.406 Dia

$ 46.25 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (83 in stock)


Item 7
(on image above)

Part # 0130-0028-1000

Thrust Washer (Front)

$ 4.62 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (22 in stock)


Item 8a
(on image above)

Part # 0130-0011-1000

O-Ring, BUNA N, (-146) 3/32CS x 2-5/8ID x 2-13/16OD

$ 2.89 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (5 in stock)


Item 8b
(on image above)

Part # 0130-0033-1000

O-Ring, VITON, (-146) 3/32CS x 2-5/8ID x 2-13/16OD

$ 4.62 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Item 9
(on image above)

Part # 0130-0021-1000

Cover (Hsg) 3/4FPT Inlet

$ 9.25 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (6 in stock)


Item 10
(on image above)

Part # 0150-0051-1000

Washer (Flat) #10 (.203 ID) x 13/32OD x 1/32Th

$ 0.58 / each

Qty :

4 are required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 11
(on image above)

Part # 0823-0008-1000

Screw (Truss Hd) Phillips #10-32 x 1-1/2Lg

$ 0.58 / each

Qty :

4 are required for rebuild

Can Ship : Same Day (14 in stock)


Item 12
(on image above)

Part # 0821-0038-1000

Lockwasher (Split) #10

$ 0.31 / each

Qty :

4 are required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 13
(on image above)

Part # 0802-0008-1000

Nut (Hex) #10-32

$ 0.62 / each

Qty :

4 are required for rebuild

Can Ship : 2 Weeks (0 in stock)
