March Pump model AC-4C Parts

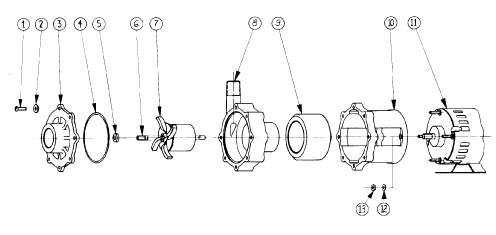

PARTS LIST for March Pump model # AC-4C Pump:
Item 1
(on image above)
Screw (Truss Hd) Phillips #8-32 x 1-3/4Lg
$ 0.86 / each
Item 2
(on image above)
Washer (Flat) #8 (.177 ID) x 7/16OD x .040 Thk
$ 1.15 / each
Item 3
(on image above)
Cover (Hsg) 1FPT Inlet
$ 11.50 / each
Item 4
(on image above)
O-Ring, Buna N (-040) 1/16CS x 2-7/8ID x 3OD
$ 3.45 / each
Item 4a
(on image above)
O-Ring, VITON (-040) 1/16CS x 2-7/8ID x 3OD
$ 4.02 / each
Item 5
(on image above)
Thrust Washer (Front)
$ 4.60 / each
Item 6
(on image above)
Shaft
$ 11.50 / each
Item 7
(on image above)
Impeller (Molded Polypro/Teflon/Glass) 2.750 Dia
$ 47.15 / each
Item 7a
(on image above)
Impeller (Encapsulated Polypro/Glass Natural) 2.750 Dia
$ 64.40 / each
Item 9
(on image above)
Drive Magnet Assy (.312 Bore)
$ 55.20 / each
Item 10
(on image above)
Bracket (Mtr) w/Inserts
$ 29.90 / each
Item 11
(on image above)
Motor, 3500 RPM, 115 Volts, 50/60 Hz, with a 38 Inch Cord Psc, replacement electric motor only (pump is not included)
$ 278.30 / each
Item 12
(on image above)
Washer (Flat) #8 (.177 ID) x 3/8OD x 1/32Thk
$ 0.46 / each
Item 13
(on image above)
Nut (Hex) #8-32
$ 0.69 / each
