Jabsco Pumps model 777-9003 Parts

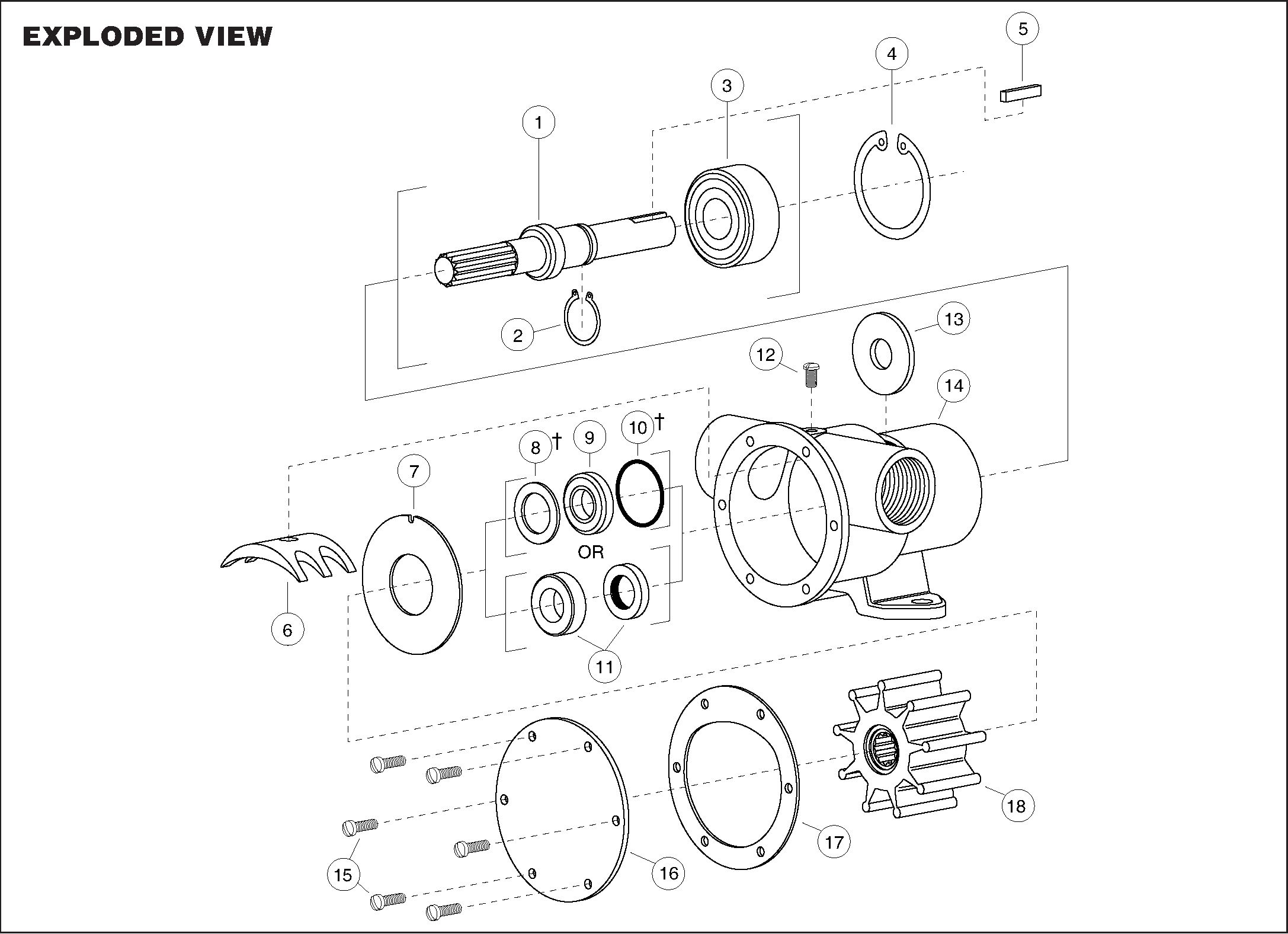

PARTS LIST for Jabsco Pump model # 777-9003 Pump:

To order parts, Check Off the boxes in the first column for each item you need.
Select the ADD TO ORDER button at the bottom to add to your Order.
Key Description Qty. Part Number Price CAN SHIP

1 Shaft 1 6718-0000 $ 88.00 Same Day
(6 in stock)
2 Retaining Ring (Brg. to Shaft) 1 18713-0000 $ 1.00 Same Day
(34 in stock)
3 Ball Bearing 1 92600-0060 $ 68.00 Same Day
(15 in stock)
4 Retaining Ring (Brg. to Body) 1 18724-0000 $ 2.00 Same Day
(61 in stock)
5 Key 1 9215-0000 $ 1.00 2-3 Days
(0 in stock)
6 Cam (Brass) - Standard 1 934-0000 $ 25.00 Same Day
(24 in stock)
7 Wearplate 1 4156-0000 $ 10.00 Same Day
(16 in stock)
11 Seal (Face)* ** - for Pump # 777-9003 only 1 96080-0080 $ 41.00 Same Day
(49 in stock)
13 Slinger, used with Lip Seal only 1 3181-0000 $ 2.00 Same Day
(4373 in stock)
14 Body 1 798-0020 $ 208.00 2-3 Days
(0 in stock)
15 Screw (End Cover) 2 91003-0010 $ 2.00 Same Day
(92 in stock)
16 End Cover 1 11831-0000 $ 17.00 Same Day
(44 in stock)
17 Gasket * 1 890-0000 $ 1.00 Same Day
(214 in stock)
18 Impeller* - Nitrile, Brass Insert 1 920-0003 $ 25.00 Same Day
(496 in stock)
** SK Service Kit (Not Shown) c/w Seal, O-Ring / Gasket, & Impeller (Nitrile) 1 90118-0003 $ 67.00 Same Day
(12 in stock)



NOTES :
