Jabsco Pump model 4530 Parts

PARTS LIST for Jabsco Pump model # 4530 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

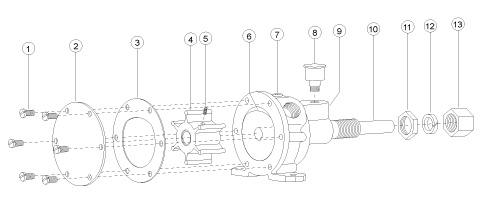

Blowup of 4530

Item 1
(on image above)

Part # 91002-0010

Screw (End Cover)

$ 14.73 / each

Item 2
(on image above)

Part # 11835-0000

End Cover

$ 22.57 / each

Item 3
(on image above)

Part # 1126-0000

Gasket

$ 10.78 / each

Item 4
(on image above)

Part # 4528-0001-P

Impeller (Neoprene)

$ 43.17 / each

Not Shown
(Not Shown on image above)

Part # 4528-0003-P

Impeller (Nitrile)

$ 43.17 / each

Item 5
(on image above)

Part # 91009-0050

Screw (Impeller)

$ 4.21 / each

Item 6
(on image above)

Part # 4538-0000

Cam

$ 27.49 / each

Item 7
(on image above)

Part # 91002-0020

Screw (Cam)

$ 3.46 / each

Item 8
(on image above)

Part # 91501-0010

Grease Cup

$ 33.64 / each

Item 10
(on image above)

Part # 4537-0000

Shaft

$ 123.37 / each

Item 12
(on image above)

Part # 4539-0000

Packing

$ 37.29 / each

Item 13
(on image above)

Part # 4536-0000

Packing Nut

$ 55.73 / each

Item SK
(on image above)

Part # 90001-0001

Service Kit (Neoprene)

$ 59.07 / each

Item SK
(on image above)

Part # 90001-0003

Service Kit (Nitrile)

$ 59.07 / each
