Jabsco Pump model 30570-0102 Parts

PARTS LIST for Jabsco Pump model # 30570-0102 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.


( Click Here for the Jabsco Pump 30570-0102 Product Page )

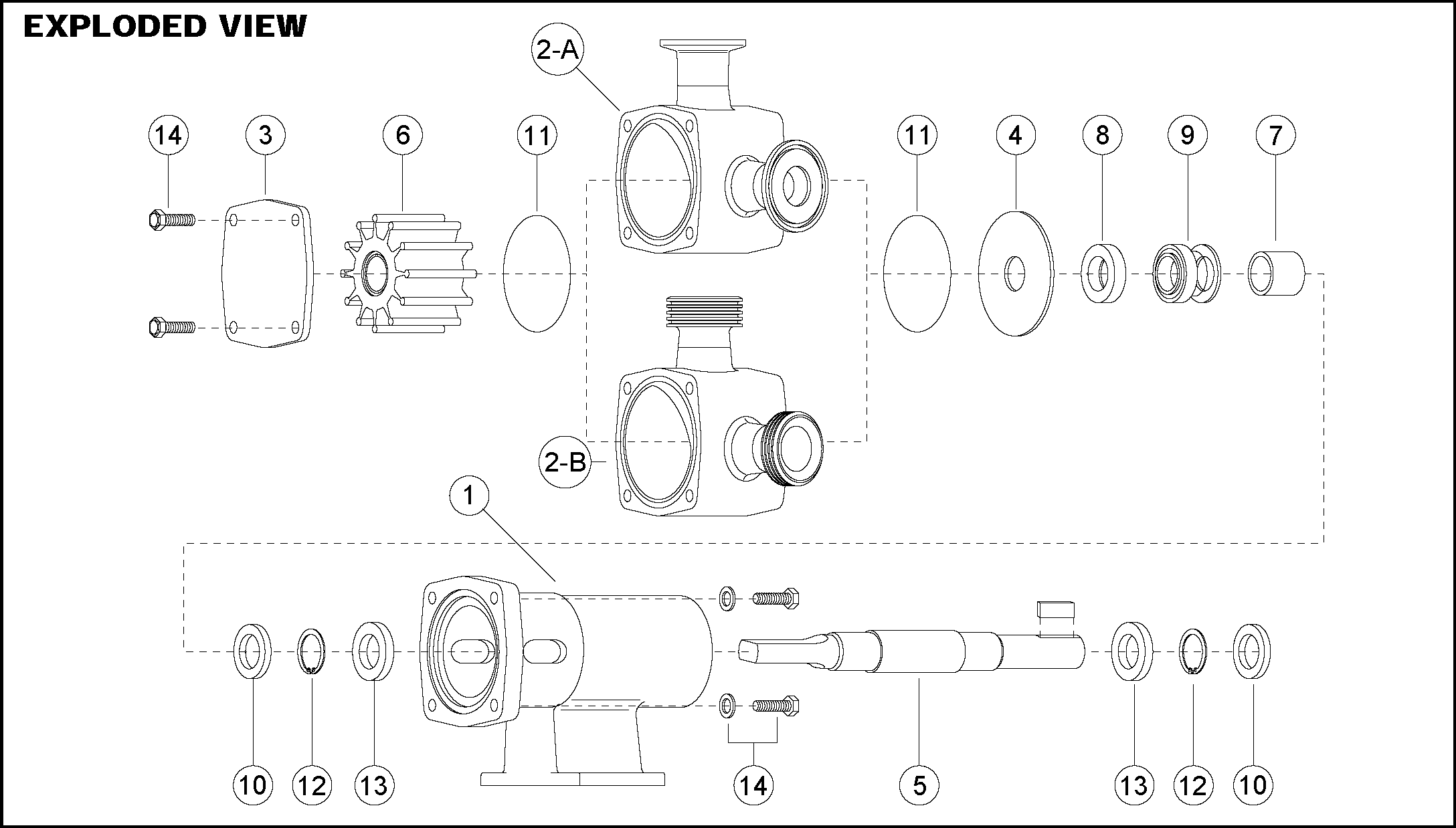

Blowup of 30570-0102


Not Shown
(Not Shown on image above)

Part # 18753-0185

Bearing Housing

$ 657.09 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (3 in stock)


Item 2B
(on image above)

Part # 18753-0366

Body, ACME Ports

$ 1975.69 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (3 in stock)


Item 3
(on image above)

Part # 18753-0367

End Cover

$ 256.16 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (6 in stock)


Item 4
(on image above)

Part # 18753-0201

Wearplate

$ 267.23 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (17 in stock)


Item 5
(on image above)

Part # 18753-0207

Shaft

$ 666.32 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (3 in stock)


Item 6
(on image above)

Part # 14346-0002B

Impeller, Standard Pressure - EPDM

$ 200.06 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (8 in stock)


Item 7
(on image above)

Part # 18753-0228

Spacer

$ 230.93 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (14 in stock)


Item 8
(on image above)

Part # 18753-0239

Seal Seat, Tungsten Carbide - Nitrile

$ 513.96 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (1 in stock)


Item 9
(on image above)

Part # 18753-0251

Seal

Mechanical Seal, Nitrile/Tungsten Carbide, less Seal Seat

$ 844.60 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (3 in stock)


Item 10
(on image above)

Part # 18753-0259

Bearing Seal

$ 32.22 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (20 in stock)


Item 11
(on image above)

Part # 18753-0265

O-Ring, Nitrile

$ 11.19 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (59 in stock)


Item 12
(on image above)

Part # 18753-0271

Retaining Ring

$ 22.83 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (8 in stock)


Item 13
(on image above)

Part # 18753-0275

Bearing

$ 99.12 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (7 in stock)


Item 14
(on image above)

Part # 18753-0285

Screw Kit, Consists of Screw Hex Hd. M8 x 20mm (4), Screw Pan Hd. M8 x 14mm (4), Washer Flat M8 (4)

$ 28.21 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (17 in stock)
