Jabsco Pump model 30560-0XXX Parts

PARTS LIST for Jabsco Pump model # 30560-0XXX Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

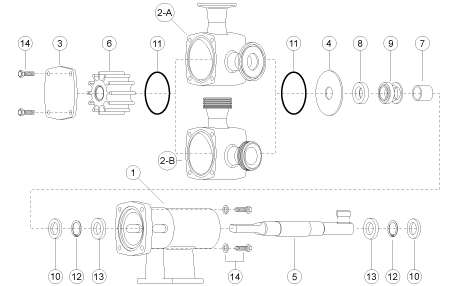

Blowup of 30560-0XXX

Item 1
(on image above)

Part # 18753-0184

Bearing Housing

$ 457.55 / each

Item 2
(on image above)

Part # 18753-0360

Body: 2-B. ACME Ports

$ 1513.36 / each

Item 3
(on image above)

Part # 18753-0361

End Cover

$ 124.57 / each

Item 4
(on image above)

Part # 18753-0200

Wearplate

$ 229.80 / each

Item 5
(on image above)

Part # 18753-0205

Shaft

$ 447.66 / each

Item 6
(on image above)

Part # 8981-0005B

Impeller: Standard Pressure - Neoprene

$ 136.96 / each

Not Shown
(Not Shown on image above)

Part # 8981-0002B

Impeller: Standard Pressure - EPDM

$ 136.96 / each

Not Shown
(Not Shown on image above)

Part # 8840-0005B

Impeller: High Pressure - Neoprene

$ 177.25 / each

Not Shown
(Not Shown on image above)

Part # 8840-0002B

Impeller: High Pressure - EPDM

$ 182.63 / each

Not Shown
(Not Shown on image above)

Part # 8840-0006B

Impeller: High Pressure - Nitrile

$ 163.81 / each

Item 7
(on image above)

Part # 18753-0225

Spacer

$ 265.56 / each

Item 8
(on image above)

Part # 18753-0235

Seal Seat: Ceramic - Nitrile

$ 42.97 / each

Item 9
(on image above)

Part # 18753-0245

Mechanical Seal, Nitrile/Carbon/Ceramic

$ 110.11 / each

Seal Kit
(Not Shown on image above)

Part # 18753-0247

Mechanical Seal, Tungsten Carbide - Nitrile

$ 514.27 / each

Item 10
(on image above)

Part # 18753-0258

Bearing Seal

$ 28.21 / each

Item 11
(on image above)

Part # 18753-0263

O-Ring: Nitrile

$ 9.41 / each

Item 12
(on image above)

Part # 18753-0270

Retaining Ring

$ 12.09 / each

Item 13
(on image above)

Part # 18753-0274

Bearing

$ 48.33 / each

Item 14
(on image above)

Part # 18753-0281

Screw Kit:Consists ofScrew, Hex Hd. M8x20mm (4)Screw, Pan Hd. M8x14mm (4)Washer, Flat M8 (4)

$ 45.91 / each
