Jabsco Pump model 30550-4XXX Parts

PARTS LIST for Jabsco Pump model # 30550-4XXX Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

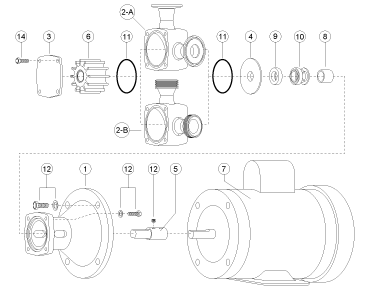

Blowup of 30550-4XXX

Item 1
(on image above)

Part # 18753-0215

Adapter

$ 1091.11 / each

Item 2
(on image above)

Part # 18753-0354

Body: 2-B. ACME Ports

$ 1307.37 / each

Item 3
(on image above)

Part # 18753-0355

End Cover

$ 99.73 / each

Item 4
(on image above)

Part # 18753-0199

Wearplate

$ 228.34 / each

Item 5
(on image above)

Part # 18753-0209

Shaft

$ 506.70 / each

Item 6
(on image above)

Part # 7614-0005B

Impeller: Standard Pressure - Neoprene

$ 118.17 / each

Not Shown
(Not Shown on image above)

Part # 7614-0002B

Impeller: Standard Pressure - EPDM

$ 122.19 / each

Item 7
(on image above)

Part # 18753-0219

Motor, 3/4 HP, 115 Vac, 1 Ph, 60 Hz, TEFC, 56c Frame

$ 576.86 / each

Item 8
(on image above)

Part # 18753-0223

Spacer

$ 221.61 / each

Item 9
(on image above)

Part # 18753-0233

Seal Seat: Ceramic Nitrile

$ 42.97 / each

Item 10
(on image above)

Part # 18753-0357

Mechanical Seal, Nitrile/Carbon/Ceramic

$ 267.37 / each

Seal Kit
(Not Shown on image above)

Part # 18753-0358

Mechanical Seal, Nitrile/Tungsten Carbide

$ 867.82 / each

Item 11
(on image above)

Part # 18753-0261

O-Ring: Nitrile

$ 9.41 / each

Item 12
(on image above)

Part # 18753-0278

Screw Kit:Consists ofScrew, Hex Hd. 3/8-16x1 (4)Screw, Hex Hd. M5x16mm (4)Screw, Hex Hd. M5x8mm (4)Set Screw, Cup Pt. 1/4-20x1/4 (2)Set Screw, Dog Point 1/4-20x1/2 (2)Washer, Flat 3/8 (4)Washer, Flat M5 (4)

$ 98.02 / each
