Jabsco Pump model 30520-4101 Parts

PARTS LIST for Jabsco Pump model # 30520-4101 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.


( Click Here for the Jabsco Pump 30520-4101 Product Page )

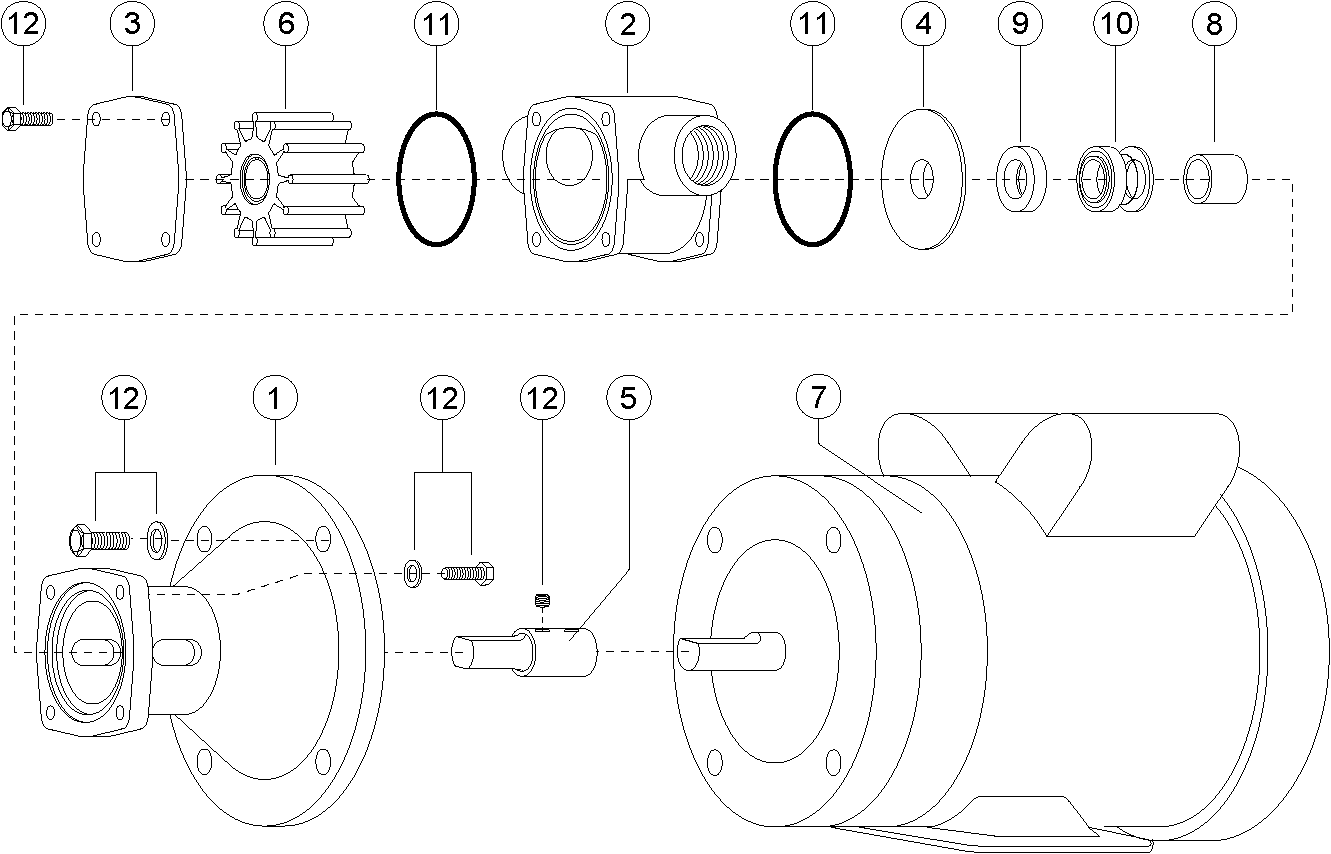

Blowup of 30520-4101


Item 1
(on image above)

Part # 18753-0216

Adaptor

$ 657.34 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (26 in stock)


Item 2
(on image above)

Part # 18753-0189

Body

$ 629.99 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (13 in stock)


Item 3
(on image above)

Part # 18753-0195

End Cover

$ 121.48 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (15 in stock)


Item 4
(on image above)

Part # 18753-0200

Wearplate

$ 229.80 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (18 in stock)


Item 5
(on image above)

Part # 18753-0211

Shaft

$ 800.54 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (18 in stock)


Item 6
(on image above)

Part # 14282-0001B

Impeller, Standard Pressure - Neoprene

$ 114.15 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (24 in stock)


Item 7
(on image above)

Part # 18753-0339

Motor, 1-1/2 HP, 115/230 Volts, 1 Phase, 60hz, 1740 RPM, TEFC, H145tc Frame, C-Face, Overload Protected, with Capacitor Start

$ 1052.39 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Item 8
(on image above)

Part # 18753-0227

Spacer

$ 165.65 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (20 in stock)


Item 9
(on image above)

Part # 18753-0235

Seal Seat, Nitrile

$ 42.97 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (41 in stock)


Item 10
(on image above)

Part # 18753-0247

Seal

Mechanical Seal, Tungsten Carbide - Nitrile

$ 514.27 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (4 in stock)


Item 11
(on image above)

Part # 18753-0263

O-Ring, Nitrile

$ 9.41 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (246 in stock)


Item 12
(on image above)

Part # 18753-0282

Screw Kit, consists of Screws, Hex Hd 3/8 -16 x 1 (4) Screws, Hex Hd M6 x 16mm (4) Screws, Hex Hd M6 x 10mm (4)Set Screw, Cup Pt. 1/4-20 x 3/8 (2) Set Screw, Dog Pt. 1/4-20 x 3/8 (2) Washers, Flat 3/8 (4) Washers, Flat M6 (4)

$ 110.11 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (17 in stock)


Item NS
(on image above)

Part # 30520-2101

Pump End Only, no motor

$ 3434.89 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)
