Jabsco Pumps model 30520-0101 Parts

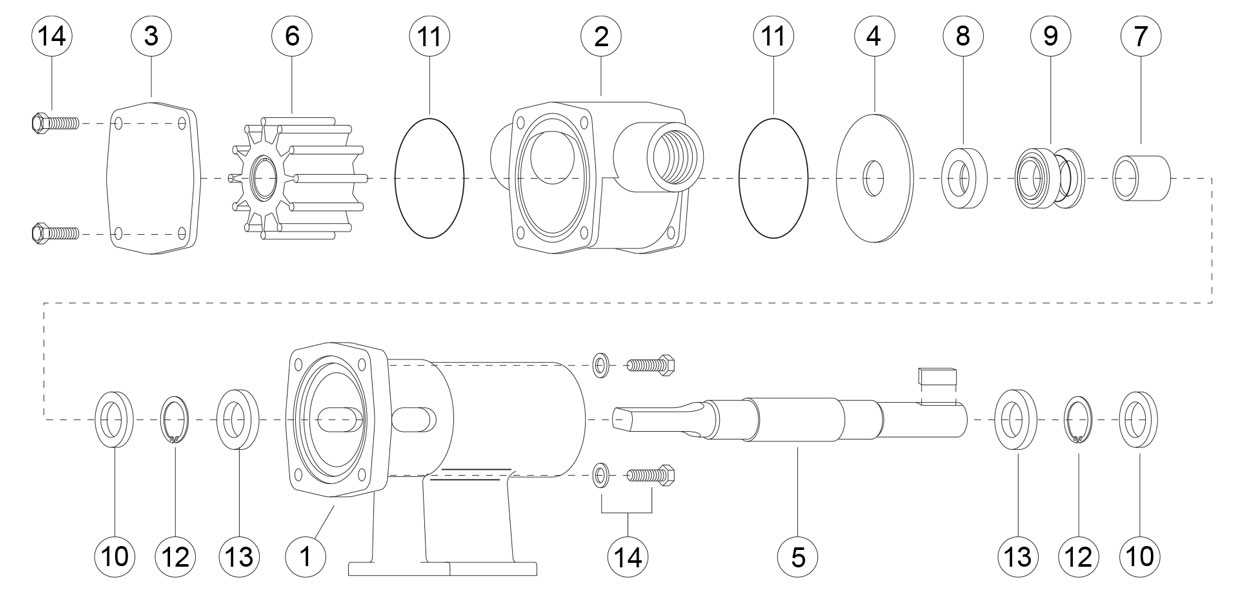

PARTS LIST for Jabsco Pump model # 30520-0101 Pump:
To order parts, Check Off the boxes in the first column for each item you need.
Select the ADD TO ORDER button at the bottom to add to your Order.
Key
Description
Qty.
Part Number
Price
CAN SHIP
1
Bearing Housing
1
18753-0184
$ 266.00
Same Day
(6 in stock)
2
Body
1
18753-0189
$ 377.00
Same Day
(13 in stock)
3
End Cover
1
18753-0195
$ 67.00
Same Day
(14 in stock)
4
Wearplate
1
18753-0200
$ 137.00
Same Day
(8 in stock)
5
Shaft
1
18753-0205
$ 248.00
Same Day
(8 in stock)
6
Impeller: Standard Pressure – Neoprene
1
14282-0001
$ 66.00
Same Day
(103 in stock)
7
Spacer:
1
18753-0225
$ 79.00
Same Day
(3 in stock)
8
Seal Seat: Nitrile
1
18753-0235
$ 28.00
Same Day
(220 in stock)
9
Seal Mech.: Tungsten Carbide – Nitrile
1
18753-0247
$ 299.00
Same Day
(4 in stock)
10
Bearing Seal
2
18753-0258
$ 20.00
Same Day
(103 in stock)
11
O-Ring: Nitrile
2
18753-0263
$ 7.00
Same Day
(170 in stock)
12
Retaining Ring
2
18753-0270
$ 8.00
Same Day
(53 in stock)
13
Bearing
2
18753-0274
$ 30.00
Same Day
(88 in stock)
14
Screw Kit:consists ofScrews, Hex Hd. M6 x 20mm (4)Screws, Pan Hd. M6 x 20mm (4)Washers, Flat M6 (4)
1
18753-0281
$ 22.00
Same Day
(8 in stock)
NOTES :
