Jabsco Pumps model 30510-3001 Parts

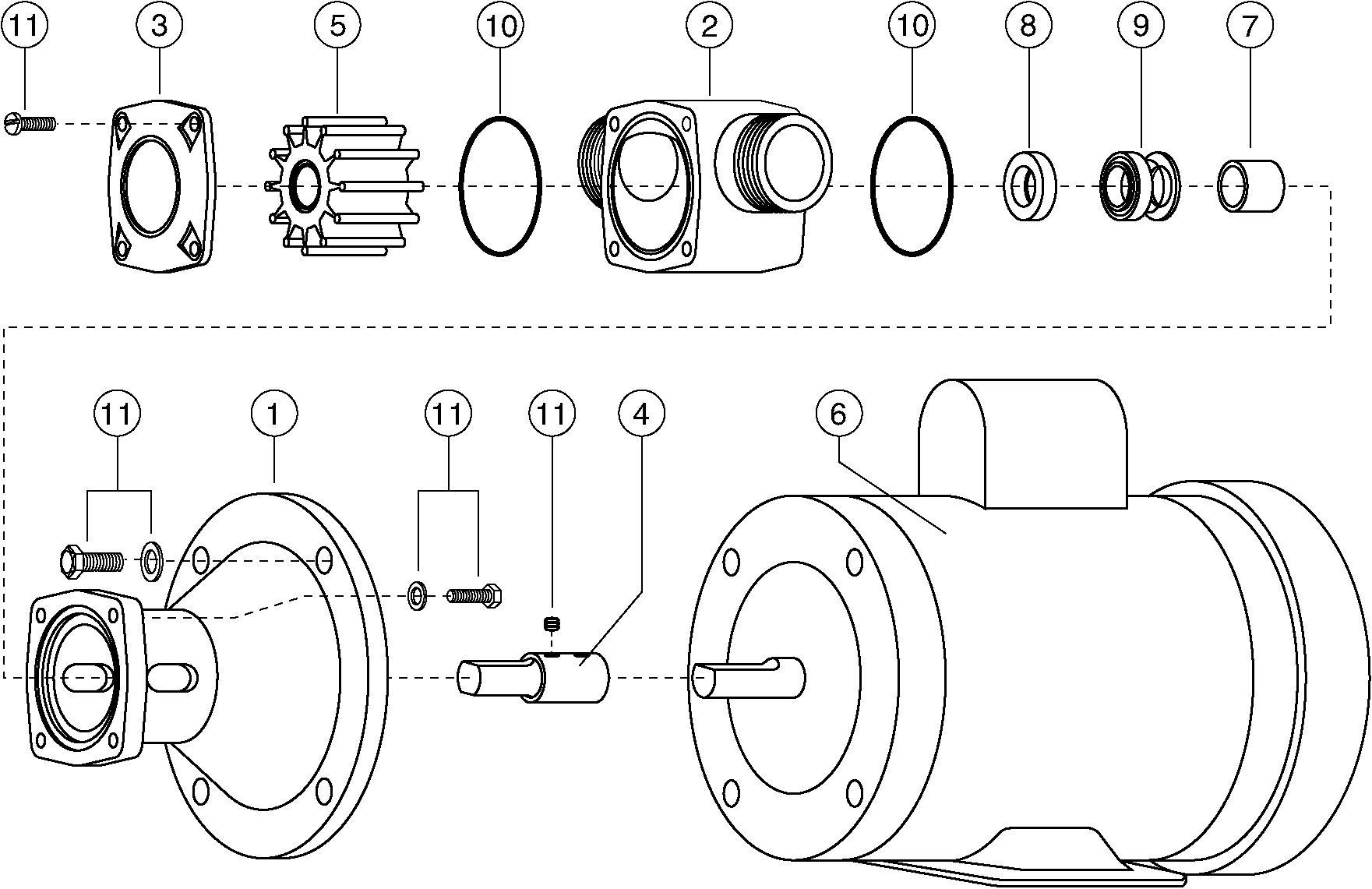

PARTS LIST for Jabsco Pump model # 30510-3001 Pump:
To order parts, Check Off the boxes in the first column for each item you need.
Select the ADD TO ORDER button at the bottom to add to your Order.
Key
Description
Qty.
Part Number
Price
CAN SHIP
1
Adapter
1
18753-0215
$ 634.00
Same Day
(24 in stock)
2
Body
1
18753-0188
$ 216.00
Same Day
(9 in stock)
3
End Cover
1
18753-0194
$ 85.00
Same Day
(19 in stock)
4
Shaft
1
18753-0210
$ 279.00
Same Day
(21 in stock)
5
Impeller: Standard Pressure - Neoprene
1
14281-0001
$ 52.00
Same Day
(44 in stock)
6
Motor, 3/4 HP, 115Vac, 1Ph, 60Hz,TEFC, C-Face, 56C Frame
1
18753-0219
$ 276.00
1-2 Days
(can build)
7
Seal Spacer
1
18753-0223
$ 79.00
Same Day
(21 in stock)
8
Seal Seat: Nitrile
1
18753-0233
$ 24.00
Same Day
(184 in stock)
9
Seal Mech.: Carbon - Nitrile
1
18753-0241
$ 49.00
Same Day
(149 in stock)
10
O-Ring: Nitrile
2
18753-0261
$ 7.00
Same Day
(2102 in stock)
11
Screw Kit:consists of:Screws, Hex Hd. 3/8-16 x 1 (4)Screws, Hex Hd. M5 x 16mm (4)Screws, Pan Hd. M5 x 8mm (4)Set Screw, Cup Pt. 1/4-20 x 1/4 (2)Set Screw, Dog Point 1/4-20x1/2 (2)Washers, Flat 3/8 (4)Washers, Flat M5 (4)
1
18753-0280
$ 53.00
Same Day
(45 in stock)
NOTES :
