Jabsco Pumps model 1673-9003 Parts

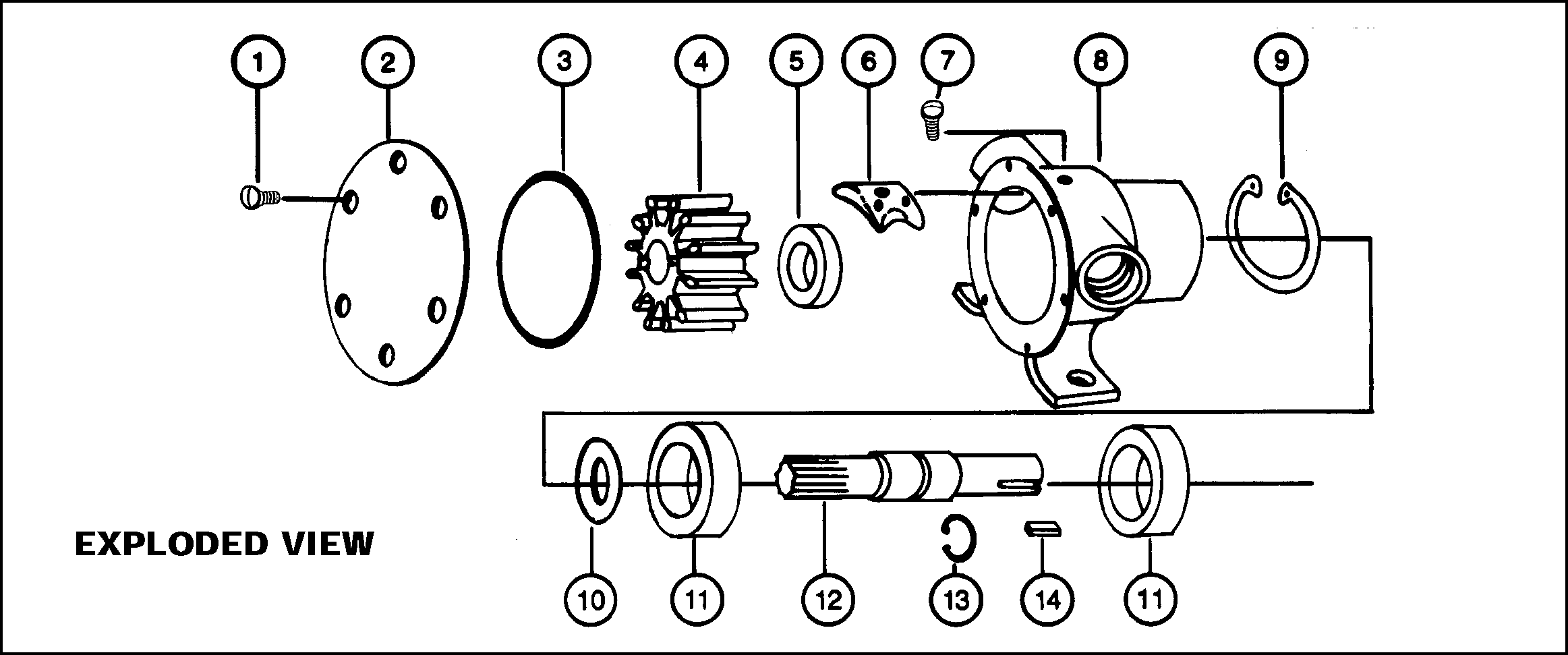

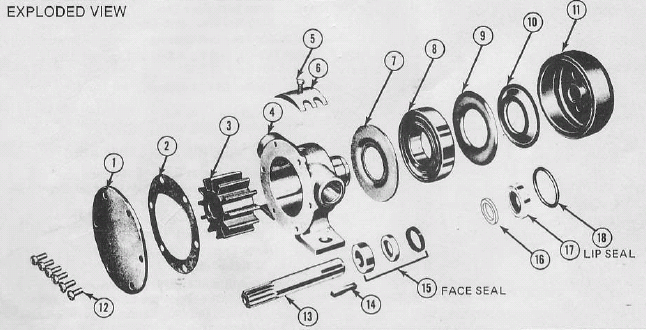

PARTS LIST for Jabsco Pump model # 1673-9003 Pump:
To order parts, Check Off the boxes in the first column for each item you need.
Select the ADD TO ORDER button at the bottom to add to your Order.
Key
Description
Qty.
Part Number
Price
CAN SHIP
2
Gasket
1
1835-0000
$ 8.66
Same Day
(82 in stock)
3
Impeller
1
1210-0003
$ 24.01
5-7 Days
(0 in stock)
5
Screw (cam)
1
91003-0010
$ 4.79
Same Day
(342 in stock)
6
Cam
1
490-0001
$ 19.78
5-7 Days
(0 in stock)
7
Bearing Shield
1
3078-0000
$ 7.99
Same Day
(1 in stock)
8
Ball Bearing
1
92600-0330
$ 76.97
Same Day
(4 in stock)
12
Screw (End Cover)
6
91003-0010
$ 4.79
Same Day
(342 in stock)
14
Key
1
9215-0010
$ 6.56
Same Day
(32 in stock)
15
Seal - Face
1
96080-0080
$ 37.49
Same Day
(276 in stock)
**SK
Service Kit c/w Impeller, Seal, Gasket
1
90119-0003
$ 72.02
5-7 Days
(0 in stock)
NOTES :
