Jabsco Pumps model 16510-3350 Parts

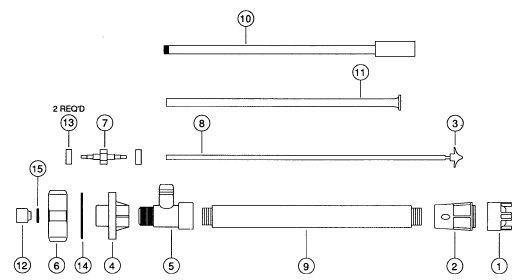

PARTS LIST for Jabsco Pump model # 16510-3350 Pump:

To order parts, Check Off the boxes in the first column for each item you need.
Select the ADD TO ORDER button at the bottom to add to your Order.
Key Description Qty. Part Number Price CAN SHIP

1 Impeller Housing 1 16406-1002 $ 31.02 Same Day
(4 in stock)
2 Conversion Chamber 1 16407-1012 $ 54.14 Same Day
(2 in stock)
3 Impeller 1 16508-1001 $ 62.30 5-7 Days
(0 in stock)
4 Bearing Housing 1 16403-0010 $ 80.33 Same Day
(10 in stock)
6 Mounting Ring 1 16409-0000 $ 15.55 Same Day
(17 in stock)
7 Bearing Shaft*** 1 16468-0000 $ 77.75 Same Day
(10 in stock)
8 Shaft - 35-1/2 (90cm) long,, for 16510-3350 1 16418-1007 $ 76.01 Same Day
(1 in stock)
11 Insert Tube - 35-1/2 (90cm) long, for 16510-3350 1 16463-0001 $ 54.04 Same Day
(2 in stock)
12 Drive Coupling 1 18753-0445 $ 25.12 Same Day
(16 in stock)
13 Bearing** 2 18753-0182 $ 10.14 Same Day
(25 in stock)
14 Retaining Ring 1 91701-4447 $ 10.07 Same Day
(15 in stock)
15 Retaining Ring 1 91701-4434 $ 2.95 Same Day
(34 in stock)
* Vapor Barrier 1 18753-0435 $ 17.48 Same Day
(11 in stock)
** Shaft/Bearing Assembly is available as a kit 1 18753-0316 $ 104.14 Same Day
(7 in stock)



NOTES :
* Vapor Barrier is available as a kit, part no. 18753-0436.
** Shaft/Bearing Assembly is available as a kit, part no/ 18753-0316
