Jabsco Pump model Parts

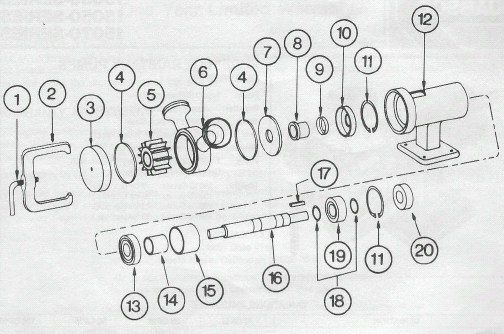

PARTS LIST for Jabsco Pump model # Pump:
( Click Here for the Jabsco Pump 15030-0775 Product Page )
Item 1
(on image above)
Clamp Screw
$ 100.53 / each
Item 2
(on image above)
Clamp
$ 297.93 / each
Item 3
(on image above)
End Cover
$ 539.39 / each
Item 4
(on image above)
O-ring *
$ 11.77 / each
Item 5
(on image above)
Impeller (high pressure Neoprene)
$ 177.25 / each
Not Shown
(Not Shown on image above)
O-Ring (Clamp port)
$ 117.07 / each
Item 7
(on image above)
Wearplate
$ 597.52 / each
Item 8
(on image above)
Seal
Seal *
$ 136.96 / each
Item 10
(on image above)
Bearing Seal
$ 51.91 / each
Item 11
(on image above)
Retaining Ring (Housing)
$ 10.41 / each
Item 13
(on image above)
Bearing
$ 189.80 / each
Item 14
(on image above)
Bearing Spacer (shaft)
$ 267.80 / each
Item 15
(on image above)
Bearing Spacer (housing)
$ 498.22 / each
Item 16
(on image above)
Shaft
$ 654.59 / each
Item 17
(on image above)
Key
$ 10.32 / each
Item 18
(on image above)
Retaining Ring (shaft)
$ 9.80 / each
Item 19
(on image above)
Ball Bearing
$ 56.01 / each
Item 20
(on image above)
Bearing Seal
$ 51.91 / each
Item SK
(on image above)
Kit
Service Kit, c/w Impeller (high pressure Neoprene), Seal, O-Ring
$ 222.30 / each
