Jabsco Pump model 12560 Parts

PARTS LIST for Jabsco Pump model # 12560 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Jabsco Pump 12560 Product Page )

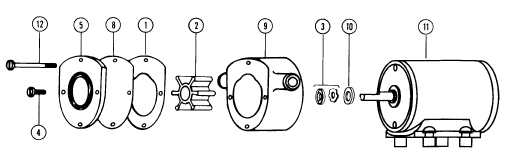

Blowup of 12560

Item 1
(on image above)

Part # 12558-0000

Gasket *

$ 3.70 / each

Item 2
(on image above)

Part # 6303-0001-P

Impeller - Standard Neoprene*

$ 28.46 / each

Not Shown
(Not Shown on image above)

Part # 6303-0003-P

Oil Resistant Nitrile Impeller

$ 28.46 / each

Item 3
(on image above)

Part # 1040-0000

Seal *

$ 11.77 / each

Item 4
(on image above)

Part # 91014-0020

Screw (End Cover)

$ 3.41 / each

Item 5
(on image above)

Part # 12555-0000

End Cover

$ 47.01 / each

Item 8
(on image above)

Part # 12557-0000

Wearplate

$ 42.08 / each

Item 9
(on image above)

Part # 12554-0000

Body

$ 104.75 / each

Item 10
(on image above)

Part # 6342-000

Slinger

Contact Us for Pricing

Item 11
(on image above)

Part # 98012-0020

Motor, 12 Volt DC

$ 299.86 / each

Item 12
(on image above)

Part # 91014-0010

Screw (Motor to Body)

$ 10.04 / each

Not Shown
(Not Shown on image above)

Part # 90126-0001

Service Kit

$ 52.05 / each

Not Shown
(Not Shown on image above)

Part # 12590-0001

Replacement Pump Head

$ 150.39 / each
