Jabsco Pump model 12290 Parts

PARTS LIST for Jabsco Pump model # 12290 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.


( Click Here for the Jabsco Pump 12290 Product Page )

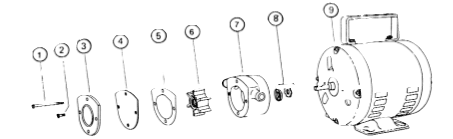

Blowup of 12290


Item 1
(on image above)

Part # 91014-0010

Screw (Body to Motor)

$ 10.04 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (11 in stock)


Item 2
(on image above)

Part # 91014-0020

Screw (end Cover)

$ 3.41 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (5 in stock)


Item 3
(on image above)

Part # 12555-0000

End Cover

$ 47.01 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (4 in stock)


Item 4
(on image above)

Part # 12557-0000

Wearplate

$ 42.08 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (9 in stock)


Item 5
(on image above)

Part # 12558-0000

Gasket*

$ 3.70 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (309 in stock)


Item 6
(on image above)

Part # 7273-0001-P

Impeller Neoprene *

$ 36.31 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (33 in stock)


Not Shown
(Not Shown on image above)

Part # 7273-0003-P

Impeller Nitrile

$ 36.31 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (31 in stock)


Item 7
(on image above)

Part # 12554-0000

Body

$ 104.75 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (4 in stock)


Item 8
(on image above)

Part # 1040-0000

Seal - Standard *

$ 11.77 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (46 in stock)


Seal Kit
(Not Shown on image above)

Part # 1040-0001

Seal - Viton

$ 24.53 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (5 in stock)


Item 9
(on image above)

Part # 18740-0000

Motor, 1/6hp - 115 Volts Ac, 60 Hz, Odp, 8 Foot Cord with 3 Prong Grounded Plug

$ 685.21 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Not Shown
(Not Shown on image above)

Part # 18742-0000

Motor, 1/4 hp, 115 Vac, 60 Hz, TENV, 1725 RPM, 8 foot Cord with 3 Prong Plug

$ 404.16 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (16 in stock)


Not Shown
(Not Shown on image above)

Part # 12590-0011

Replacement Pump Head w/Neoprene Impeller

$ 150.39 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (16 in stock)


Not Shown
(Not Shown on image above)

Part # 12590-0003

Replacement Pump Head w/Nitrile Impeller

$ 178.67 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Not Shown
(Not Shown on image above)

Part # 12590-0021

Replacement Pump Head w/Viton Impeller

$ 320.67 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Not Shown
(Not Shown on image above)

Part # 90126-0002

Service Kit w/Neoprene Impeller

$ 47.12 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Not Shown
(Not Shown on image above)

Part # 90126-0013

Service Kit w/Nitrile Impeller

$ 47.21 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Not Shown
(Not Shown on image above)

Part # 90126-0004

Service Kit w/Viton Impeller

$ 124.63 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (3 in stock)
