Jabsco Pumps model 11870-0006 Parts

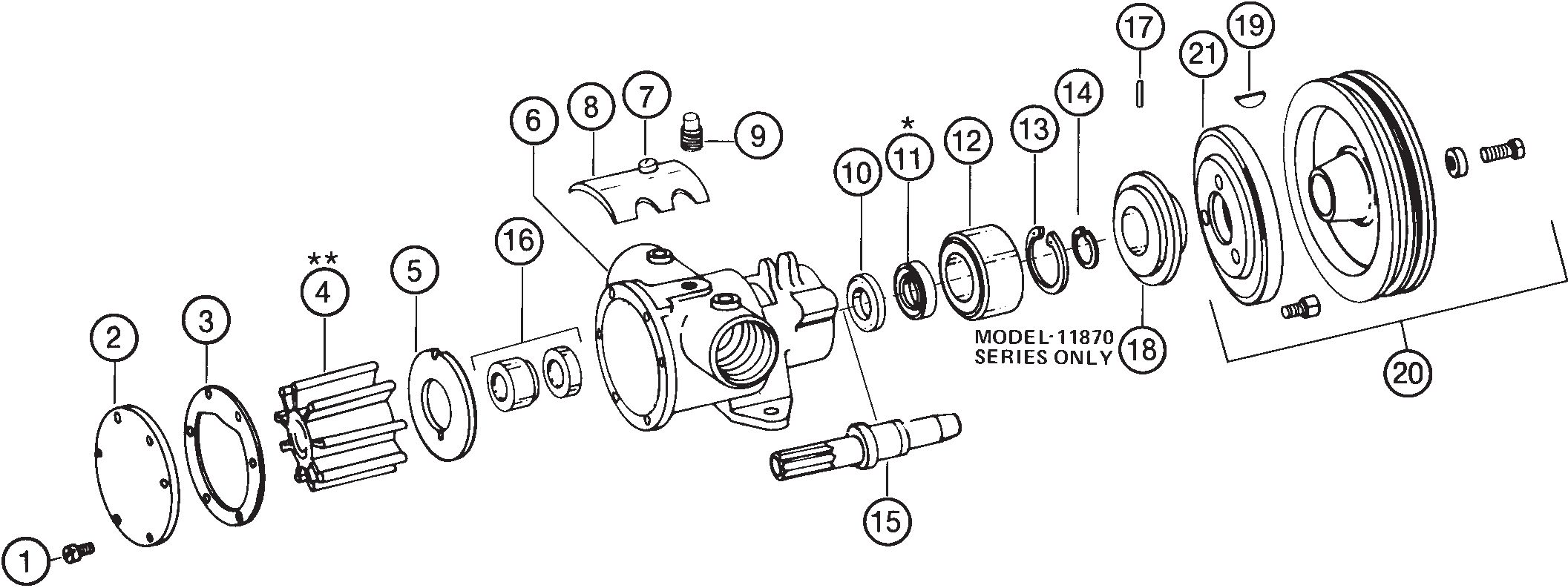

PARTS LIST for Jabsco Pump model # 11870-0006 Pump:

To order parts, Check Off the boxes in the first column for each item you need.
Select the ADD TO ORDER button at the bottom to add to your Order.
Key Description Qty. Part Number Price CAN SHIP

1 Screw End Cover (3 Per Kit) 2 91005-0040 $ 1.00 Same Day
(1954 in stock)
2 End Cover 1 12062-0000 $ 51.00 Same Day
(265 in stock)
3 Gasket 1 816-0000 $ 7.00 Same Day
(379 in stock)
4 Impeller Nitrile, Brass 1 836-0003 $ 38.00 Same Day
(72 in stock)
5 Wearplate 1 2574-0000 $ 17.00 Same Day
(152 in stock)
7 Screw Cam (3 Per Kit) 1 91005-0040 $ 1.00 Same Day
(1954 in stock)
8 Cam, Brass 1 834-0001 $ 37.00 Same Day
(17 in stock)
9 Pipe Plug 2 92650-0070 $ 5.00 2-3 Days
(0 in stock)
10 Slinger 1 3181-0000 $ 2.00 Same Day
(4373 in stock)
11 Seal (Bearing) 1 817-0000 $ 17.00 Same Day
(243 in stock)
12 Ball Bearing (Pump) 1 92600-0040 $ 92.00 Same Day
(28 in stock)
13 Retaining Ring (Brg to Body) 1 18712-0000 $ 7.00 Same Day
(74 in stock)
14 Retaining Ring (Brg to Shaft) 1 18711-0000 $ 4.00 Same Day
(68 in stock)
15 Shaft 1 11877-0000 $ 154.00 Same Day
(1 in stock)
16 Seal (Shaft) 1 6407-0010 $ 45.00 Same Day
(89 in stock)
17 Roll Pin (Adaptor) 1 93100-0160 $ 8.00 Same Day
(3 in stock)
18 Adaptor 1 11876-0000 $ 81.00 2-3 Days
(0 in stock)
19 Key (Clutch Drive) 1 91401-0100 $ 4.00 Same Day
(2 in stock)
20 Clutch Assy. Complete 24 V – 2-A Grooves 1 92300-0061 $ 217.00 Same Day
(1 in stock)
** SK Pump Service Kit Nitrile Impeller 1 90062-0003 $ 94.00 1-2 Days
(can build)



NOTES :
