Berkeley Pump model B76783 Parts

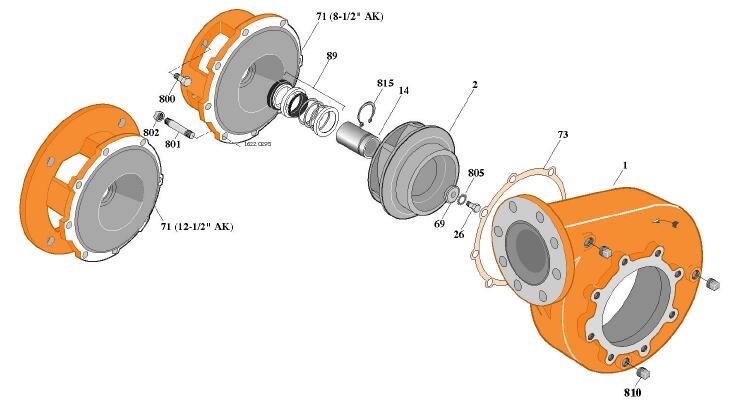

Parts Table is below the image.
Scroll down for Item Listings and Prices.
Products in the table are matched to the number on the image using a Item Key.

Go To PARTS TABLE below (click here or scroll down)

View Shopping Cart

Proceed to Checkout

Key	SKU	Description	Price	Stock	Required
Parts List for Berkeley Pump model # B76783
1	H05065	Case, Volute	$4652.90	0 in Stock	1

2	M11571	Impeller, 7.69x8.69 Diameter, for 25 HP / 3 phase pumps.	$5963.60	0 in Stock	1

26	S23627	Screw, Impeller 1/2 - 13 x 2	$21.25	1 in Stock	1

32	S23677	Key, 1/4x2-1/4 (See Note)	$26.35	1 in Stock	1

69	S06319	Washer, Impeller	$125.80	1 in Stock	1

71	L04627	Bracket	$3497.75	0 in Stock	1

73	S05126	Gasket, Volute	$36.55	2 in Stock	1

89	S32015	Seal, Mechanical Shaft	$577.15	2 in Stock	1

800	S26912	Capscrew, 1/2 - 13 x 1 (4 Req.) (For 8-1/2 AK)	$10.02	1 in Stock	1

800	S26997	Capscrew, 5/8- 11 x 1-1/4 (4 Req.) (For 8-1/2 AK)	$13.99	1 in Stock	1

801	S09942	Stud, 3/8- 16x1-3/8 (8 Req.)	$21.22	1 in Stock	8

802	S23103	Nut, 3/8 -16 (8 Req.)	$10.02	1 in Stock	8

805	S23038	Washer, Lock	$7.18	1 in Stock	1

810	S23717	Plug, Pipe l/2NPT(3Req.)	$2.77	1 in Stock	3

815	S16767	Ring, Retaining	$94.35	10 in Stock	1
