Berkeley Pump model B76774 Parts

Parts Table is below the image.
Scroll down for Item Listings and Prices.
Products in the table are matched to the number on the image using a Item Key.

Go To PARTS TABLE below (click here or scroll down)

View Shopping Cart

Proceed to Checkout

Key	SKU	Description	Price	Stock	Required

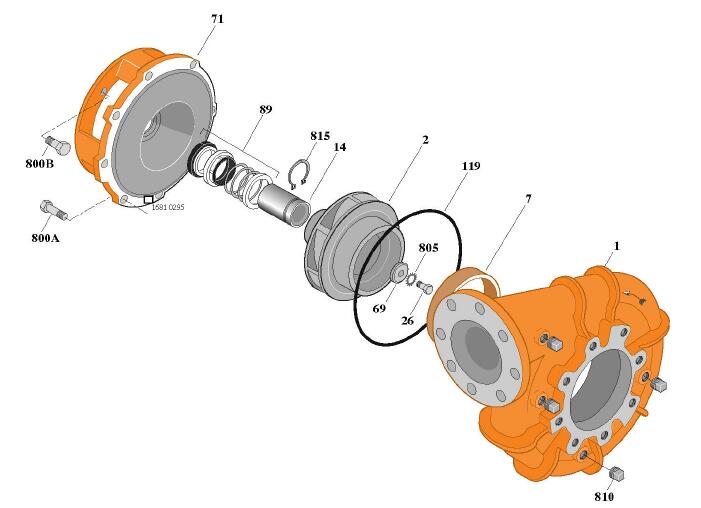

Parts List for Berkeley Pump model # B76774
1	H02692	Case, Volute	$6335.05	0 in Stock	1

2	M11563	Impeller, 8.94 Diameter, for 15 HP / 3 phase pumps.	$5842.90	0 in Stock	1

7	S15630	Ring, Wearing	$430.95	10 in Stock	1

26	S23619	Screw, Impeller 1/2 - 13 x 1	$17.48	1 in Stock	1

32	S23677	Key, 1/4x2-1/4 (See Note)	$26.35	1 in Stock	1

69	S06319	Washer, Impeller	$125.80	1 in Stock	1

71	L04616	Bracket	$2215.95	0 in Stock	1

89	S32015	Seal, Mechanical Shaft	$577.15	2 in Stock	1

119	S13760	O-Ring	$48.45	10 in Stock	1

800A	S26914	Capscrew, 1/2 - 13 x 1-1/4 (8 Req.)	$10.02	1 in Stock	8

800B	S26912	Capscrew, 1 12 - 1 3 x 1(4 Req. )	$10.02	1 in Stock	4

805	S23038	Washer, Lock	$7.18	1 in Stock	1

810	S23717	Plug, Pipe l/2NPT(4Req.)	$2.77	1 in Stock	4

815	S16767	Ring, Retaining	$94.35	10 in Stock	1
