Berkeley Pumps model B62043 Parts

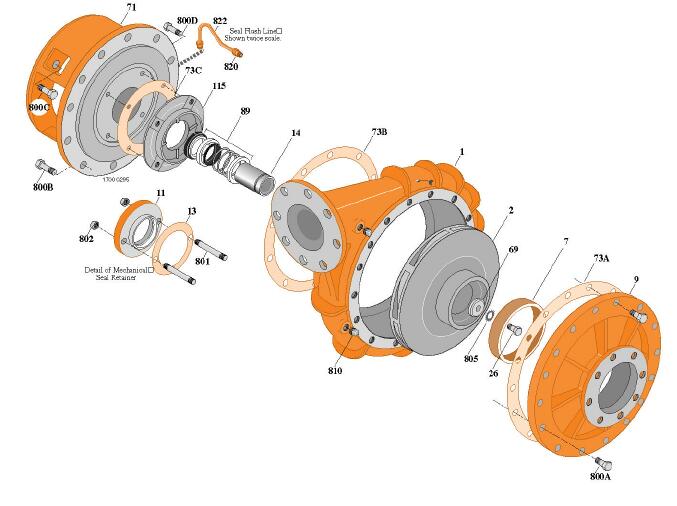

PARTS LIST for Berkeley Pump model # B62043 Pump:
To order parts, Check Off the boxes in the first column for each item you need.
Select the ADD TO ORDER button at the bottom to add to your Order.
Key
Description
Qty.
Part Number
Price
CAN SHIP
1
Case, Volute
1
L01536
$ 3269.96
2 Weeks
(0 in stock)
2
Impeller, 17.88 Diameter, for 100 HP / 3 phase pumps.
1
L02425
$ 3511.23
2 Weeks
(0 in stock)
7
Ring, Wearing
1
S15718
$ 115.30
2 Weeks
(0 in stock)
9
Cover, Suction
1
L01541
$ 2497.86
2 Weeks
(0 in stock)
11
Retainer, Mechanical Shaft Seal
1
S15377
$ 406.84
2 Weeks
(0 in stock)
14
Sleeve, Shaft
1
S07073
$ 149.76
Same Day
(1 in stock)
26
Screw, Impeller 1/2 - 13 x 1-1/4
1
S23621
$ 7.66
2 Weeks
(0 in stock)
32
Key, 1/4x2-1/4 (See Note)
1
S23677
$ 11.29
2 Weeks
(0 in stock)
69
Washer, Impeller (60-75 HP)
1
S34492
$ 162.36
2 Weeks
(0 in stock)
69
Washer, Impeller (100 HP)
1
S07829
$ 217.83
2 Weeks
(0 in stock)
71
Bracket
1
H03936
$ 2203.09
2 Weeks
(0 in stock)
73A
Gasket, Suction Cover
1
S06401
$ 33.36
2 Weeks
(0 in stock)
73B
Gasket, Volute Case
1
S06271
$ 17.22
2 Weeks
(0 in stock)
73C
Gasket, Balance Ring
1
S09943
$ 7.20
Same Day
(2 in stock)
73D
Gasket, Seal Retainer
1
S15078
$ 9.41
2 Weeks
(0 in stock)
89
Seal, Mechanical Shaft
1
S32016
$ 625.92
Same Day
(2 in stock)
115
Ring, Balance
1
S13655
$ 299.01
2 Weeks
(0 in stock)
800A
Capscrew, 5/8 - 11 x 1-3/4 (20 Req.)
1
S27001
$ 5.91
2 Weeks
(0 in stock)
800B
Capscrew, 5/8 - 11 x 1-1/2 (12 Req.)
1
S26999
$ 5.91
2 Weeks
(0 in stock)
801
Stud, 3/8- 16x2-1/2 (2 Req.)
2
S04438
$ 13.85
2 Weeks
(0 in stock)
802
Nut, 3/8- 16 (2 Req.)
2
S23343
$ 5.91
2 Weeks
(0 in stock)
805
Washer, Lock (Not On 100 HP)
1
S23038
$ 3.63
2 Weeks
(0 in stock)
810
Plug, Pipe l/2NPT(4Req.)
4
S23717
$ 9.41
2 Weeks
(0 in stock)
820
Connector, Comp. Fitting (2 Req.)
2
S24013
$ 11.29
2 Weeks
(0 in stock)
822
Tubing, Copper
1
S20677
$ 2.02
2 Weeks
(0 in stock)
*
Plug, Pipe 1/8 NPT (Not Illustrated)
1
S23714
$ 5.91
2 Weeks
(0 in stock)
*
Plug, Pipe 1/4 NPT (Not Illustrated)
1
S23715
$ 7.66
2 Weeks
(0 in stock)
NOTES :
