Series # B53748 Parts
B1-1/2TPL 5HP 115/230V 184JP 1PH 3450RPM

PARTS LIST for Series # B53748 Pump is at the bottom of this page.
Parts can be ordered off of the page by checking the desired checkboxes and submitting the form.

To order parts, Check Off the boxes in the first column for each item you need.
Select the ADD TO ORDER button at the bottom to add to your Order.

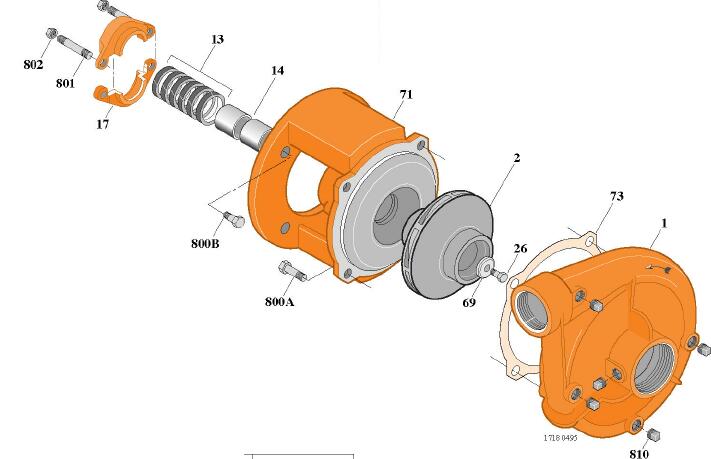

Key Description Qty. Part Number Price CAN SHIP

1 Case, Volute 1 L01018 $ 606.00 1 Week
(0 in stock)
2 Impeller, 6.50 Diameter, for 5 HP / 1 phase pumps. 1 S07367 $ 446.00 1 Week
(0 in stock)
13 Rings, Packing (Set of 6) 1 S13469 $ 69.00 1 Week
(0 in stock)
14 Sleeve, Shaft (2 Req.) 2 S00619 $ 68.00 1 Week
(0 in stock)
17 Gland, Packing 1 B82469 $ 111.00 1 Week
(0 in stock)
26 Screw, Impeller 3/8 -16x1 1 S23566 $ 4.00 1 Week
(0 in stock)
32 Key, 3/16x1-1/4 (See Note) 1 S34383 $ 8.00 1 Week
(0 in stock)
69 Washer, Impeller 1 S16239 $ 8.00 1 Week
(0 in stock)
71 Bracket 1 L01525 $ 830.00 1 Week
(0 in stock)
73 Gasket, Volute 1 S04757 $ 14.00 1 Week
(0 in stock)
800A Capscrew, 1/2 - 13 x 1 (4 Req.) 4 S26912 $ 2.00 1 Week
(0 in stock)
800B Capscrew, 3/8 - 16 x 7/8 (4 Req.) 4 S26825 $ 2.00 1 Week
(0 in stock)
801 Stud, 3/8- 16x4 (2 Req.) 2 S08303 $ 17.00 1 Week
(0 in stock)
802 Nut, Hex 3/8- 16 (2 Req.) 2 S23343 $ 5.00 1 Week
(0 in stock)
810 Plug, Pipe 1/4 NPT (5 Req.) 5 S23715 $ 7.00 1 Week
(0 in stock)



NOTES :
