Series # B51727 Parts
B4EPM 20HP 256JP 1800RPM 3PH 60HZ 1-STG

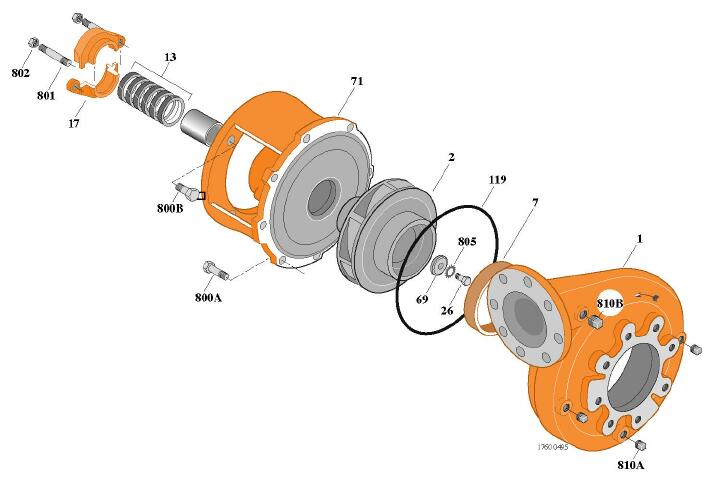

PARTS LIST for Series # B51727 Pump is at the bottom of this page.
Parts can be ordered off of the page by checking the desired checkboxes and submitting the form.

To order parts, Check Off the boxes in the first column for each item you need.
Select the ADD TO ORDER button at the bottom to add to your Order.
Key Description Qty. Part Number Price CAN SHIP

1 Case, Volute 1 H01939 $ 2050.00 1 Week
(0 in stock)
7 Ring, Wearing 1 S13061 $ 165.00 1 Week
(0 in stock)
13 Rings, Packing (Set of 6) 1 S13470 $ 103.00 1 Week
(0 in stock)
14 Sleeve, Shaft 1 S05149 $ 92.00 1 Week
(0 in stock)
17 Gland, Packing 1 B82470 $ 119.00 1 Week
(0 in stock)
26 Screw, Impeller 1/2 - 13 x 1-3/4 1 S23625 $ 8.00 1 Week
(0 in stock)
32 Key, 1/4x2-1/4 (See Note) 1 S23677 $ 10.00 1 Week
(0 in stock)
69 Washer, Impeller 1 S06319 $ 44.00 1 Week
(0 in stock)
71 Bracket 1 L03637 $ 1196.00 1 Week
(0 in stock)
119 O-Ring 1 S13760 $ 20.00 1 Week
(0 in stock)
801 Stud, 3/8- 16x2-l/2(2Req.) 2 S04438 $ 14.00 1 Week
(0 in stock)
802 Nut, Hex 3/8- 16 (2 Req.) 2 S23343 $ 5.00 1 Week
(0 in stock)
805 Washer, Lock 1 S23038 $ 2.00 1 Week
(0 in stock)
800A Capscrew, 1/2 - 13 x 1-1/4 (8 Req.) 8 S26914 $ 2.00 1 Week
(0 in stock)
800B Capscrew, 1/2- 13 x 1-1/2 (4 Req.) 4 S26916 $ 5.00 1 Week
(0 in stock)
810A Plug, Pipe l/4NPT(3Req.) 3 S23715 $ 7.00 1 Week
(0 in stock)
81OB Plug, Pipe l/2NPT(2Req.) 2 S23717 $ 8.00 1 Week
(0 in stock)



NOTES :
