Series # B51700 Parts
B3TPM 1HP 230/460V 143JP 3PH 1750RPM

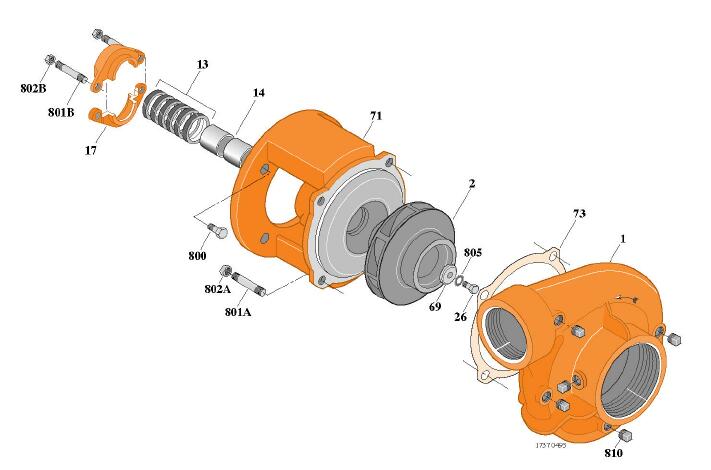

PARTS LIST for Series # B51700 Pump is at the bottom of this page.
Parts can be ordered off of the page by checking the desired checkboxes and submitting the form.

To order parts, Check Off the boxes in the first column for each item you need.
Select the ADD TO ORDER button at the bottom to add to your Order.
Key Description Qty. Part Number Price CAN SHIP

1 Case, Volute 1 L01104 $ 830.00 1 Week
(0 in stock)
2 Impeller, 5.12 Diameter, for 1 HP / 3 phase pumps. 1 M07652 $ 511.00 1 Week
(0 in stock)
13 Rings, Packing (Set of 6) 1 S13469 $ 69.00 1 Week
(0 in stock)
14 Sleeve, Shaft (2 Req.) 2 S00619 $ 68.00 1 Week
(0 in stock)
17 Gland, Packing 1 B82469 $ 111.00 1 Week
(0 in stock)
26 Screw, Impeller 3/8 -16x1 1 S23566 $ 4.00 1 Week
(0 in stock)
32 Key, 3/16x1-1/4 (See Note) 1 S34383 $ 8.00 1 Week
(0 in stock)
69 Washer, Impeller 1 S06314 $ 23.00 1 Week
(0 in stock)
71 Bracket 1 L01525 $ 830.00 1 Week
(0 in stock)
73 Gasket, Volute 1 S04757 $ 14.00 1 Week
(0 in stock)
800 Capscrew, 3/8 - 16 x 7/8 (4 Req.) 4 S26825 $ 2.00 1 Week
(0 in stock)
801A Stud, 1/2- 13 x 1-1/2 (4 Req.) 4 S24043 $ 8.00 1 Week
(0 in stock)
801B Stud, 3/8- 16x4 (2 Req.) 2 S08303 $ 17.00 1 Week
(0 in stock)
802A Nut, Hex 1/2- 13 (4 Req.) 4 S23107 $ 2.00 1 Week
(0 in stock)
802B Nut, Hex 3/8- 16 (2 Req.) 2 S23343 $ 5.00 1 Week
(0 in stock)
810 Plug, Pipe l/4NPT(5Req.) 5 S23715 $ 7.00 1 Week
(0 in stock)



NOTES :
