Tuthill # 00LE-C-7 Rotary Gear Pump

Tuthill Pump 00LE-C-7

Tuthill # 00LE-C-7

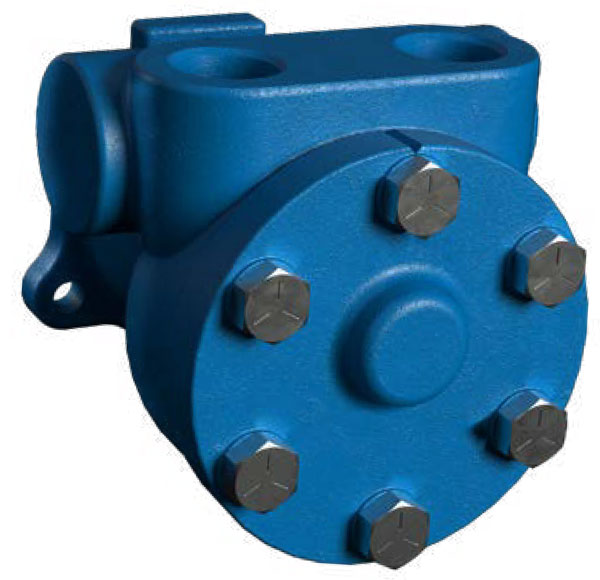

Tuthill catalog # 00LE-C-7, Cast Iron Rotary Gear Pump, Pump End Only, no motor, with Clockwise rotation only (from shaft end view), standard shaft, Viton mechanical shaft seal and o-ring, Viton elastomers, and 1/2 Inch NPT by 1/2 Inch NPT ports.

Price : $ 598.05

Qty :

Same Day (5 in stock)

Click Here for PARTS



Product Information :

The Tuthill 00LE-C-7 is a Cast Iron Rotary Gear Pump, Pump End Only, no motor, with Clockwise rotation only (from shaft end view), standard shaft, Viton mechanical shaft seal and o-ring, Viton elastomers, and 1/2 Inch NPT by 1/2 Inch NPT ports, replacement pump end only without a Motor. This pump is suitable for equipment, motor, or adapter mounting. Tuthill LE Series cast iron pumps employ the internal gear pumping principle. There are only two moving parts, and the pumping action is based on a rotor, idler gear, and crescent shaped partition cast integral with the cover. This pump can be driven in either direction of rotation, unless outfitted with an internal relief valve. This pump does NOT have an internal relief valve, so an external relief valve should be added somewhere on the discharge piping. Please note that this pump is a positive displacement pump and as the pump rotates, liquid is positively delivered to the discharge side of the pump. If the discharge line is closed off, pressure will increase until the drive stalls and/or fails, the pump breaks or ruptures, or the piping bursts. To prevent this from happening, the use of a pressure relief valve is required, or use of an in-line safety relief valve, pressure shutdown switch or other similar device. A relief valve that directs the flow back to the supply tank is recommended. This pump should not be used for handling plain water, corrosive or abrasive liquids or liquids not possessing adequate lubricity. Do not run the pump dry, as this could cause severe damage to the internal seal, bushings and/or metal parts.

Features :


Parts and Accessories for Tuthill model 00LE-C-7


Shaft Seal :

Catalog # 1LA9-7, Viton mechanical seal

Price: $ 155.20

Qty :

Can Ship : Same Day (22 in stock)


Other Parts :

Catalog # 0L81-C, Mounting Foot, L Series

Price: $ 107.20

Qty :

Can Ship : Same Day (2 in stock)

Applications

There are many applications that the Tuthill 00LEC7 can be used in. These LubeTech Series pumps have set the industry standard for lubrication and circulation applications. This internal gear pump has been engineered to satisfy customers everchanging requirements throughout a wide range of applications. Original Equipment Manufacturers worldwide incorporate these internal gear pumps into their products for lubrication and transfer service. This reliable internal gear pump is ideal for custom OEM lubricating, lowpressure hydraulic, transfer, circulating, burner oil and many other industrial pump applications. It can be used in Air Conditioning Compressors, Air Compressors, Gas Compressors, Gearboxes, Transmissions, and Engines.
