Shurflo Pumps | Shurflo Pump Parts

Scroll down the page for prices & model #"s, or to order a specific model.

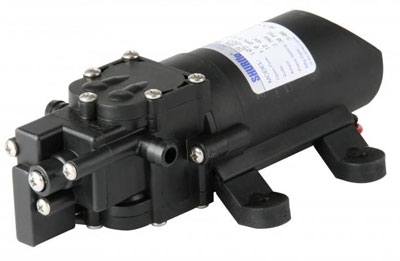

Model # SLV10-AA41 - Diaphragm Pump

FEATURES
APPLICATIONS
MODEL NUMBER: 8090-212-246
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CHECK VALVE: (2-Way Operation) Prevents Reverse Flow & 6 Ft. Head Forward Flow
CAM: 2.5 Degree
MOTOR: Permanent Magnet, P/N 11-160-00, Thermally Protected
VOLTAGE: 230 VAC Nominal
PRESSURE SWITCH: Adjustable Shut-Off (Range 40-60 PSI)
  Factory Set @ 60 PSI, Turn On 45 PSI 5 PSI
LIQUID TEMPERATURE: 170 Degrees Fahrenheit (77 Degrees Centigrade) Max.
PRIME: Self-Priming Up To 7 Ft. Vertical,
    Max. Inlet Pressure 30 PSI (2.1 Bar)
PORTS: 3/8"-18 NPT Female
MATERIAL OF CONSTRUCTION:
    PLASTICS - Polypropylene
    VALVES - EPDM
    DIAPHRAGM - Santoprene
    FASTENERS - Zinc Plated Steel
NET WEIGHT: 3.85 Lbs (1.75 Kg)
DUTY CYCLE: Intermittent (See Temperature Rise Chart)
TYPICAL APPLICATIONS: Soil Extraction
APPROVALS: VDE Approved

Available Model # SLV10-AA41 - Diaphragm Pump
Model # Description Price / ea. ORDER CAN SHIP
SLV10-AA41 Pump and Motor Unit, 12 Volts DC, 1.0 GPM open flow, Viton valves, Santoprene diaphragm, 40 PSI Demand Switch, 3/8" Barb Ports $ 62.12 Qty. Same Day
(11 in stock)
