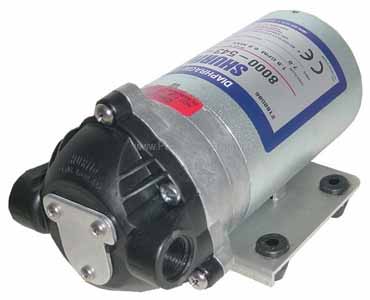

Model # 8090-911-250 - 230 VAC w/ Bypass

Shurflo Pump 8090-911-250

Shurflo # 8090-911-250

Shurflo catalog # 8090-911-250, 230 Volt AC (single phase), 1 GPM open flow, 45 PSI Bypass, EPDM valves, Santoprene diaphragm. 3/8" NPT Nylon (Female) Ports

Price : $250.06

Qty :

3 Weeks (out of stock)


Applications

PUMP DESIGN Positive Displacement 3 Chamber Diaphragm Pump CAM 2.5 Degree CHECK VALVE 2Way Op. Prevents Reverse Flow & 6 Ft. Head Forward Flow MOTOR Permanent Magnet, P/N 1115010, Thermally Protected VOLTAGE 115 VAC Nominal PRESSURE SWITCH Adjustable ShutOff Range 80100 PSI, Factory Set 100 PSI, Turn On 85 PSI / 5 PSI BYPASS 80 PSI LIQUID TEMPERATURE 180 Degrees Fahrenheit 82 Degrees Centigrade Max. PRIME SelfPriming Up To 7 Ft. Vertical,     Max. Inlet Pressure 30 PSI 2.1 Bar PORTS 3/8"18 NPT Female MATERIAL OF CONSTRUCTION     PLASTICS Nylon     VALVES Viton     DIAPHRAGM Viton Switch, Santoprene Main     FASTENERS Zinc Plated Steel NET WEIGHT 4.9 Lbs 2.2 Kg DUTY CYCLE Intermittent TYPICAL APPLICATIONS Soil Extraction UL/CSA Recognized Component
