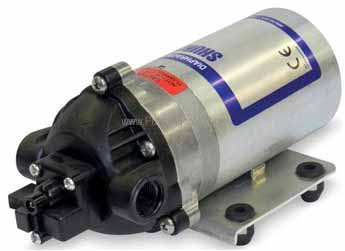

Shurflo # 8090-902-248 Diaphragm Pump with Automatic Switch

Shurflo Pump 8090-902-248

Shurflo # 8090-902-248

Shurflo catalog # 8090-902-248, Diaphragm Pump with 230 Volt AC Motor and 100 PSI Automatic Demand Switch. Nylon Pump Body, EPDM Valves, Santoprene Diaphragm. Inlet Port is 3/8 Inch-18 NPT Female, Discharge Port is 3/8 Inch-18 NPT Female. 1.4 GPM open flow.

Price : $ 237.71

Qty :

Same Day (1 in stock)

Click Here for PARTS



Product Information :

The 8000 series diaphragm pump is the most widely used Shurflo industrial pump. With spherically shaped valves and automatic demand switch, these pumps deliver consistent, dependable operation and priming. They can be mounted in any position, and are designed for easy maintenance. The 8000 series pumps are self priming. Horizontal and vertical prime vary depending on the fluid viscosity and pump configuration.


NOTE : This pump is rated for Intermittent Duty : "Intermittent Duty" is defined as; operated and/or frequently started within a period of time that would cause the motor to reach its maximum thermal limits. Once the maximum thermal limit is obtained, the motor must be allowed to return to ambient temperature before resuming operation.

Features :

Pump Body:
Nylon
Impeller:
EPDM
Shaft:
Santoprene
Port Size:
Inlet Port is 3/8 Inch-18 NPT Female, Discharge Port is 3/8 Inch-18 NPT Female.
Motor Specs :
230 Volt AC, Permanent Magnet, P/N 11-160-10, Thermally Protected. Wire: 27 Inch x 18AWG wires with Switch.

Parts and Accessories for Shurflo model 8090-902-248


Check Valve Kit :

Catalog # 94-374-16, CHECK VALVE EPDM

Price: $ 17.01

Qty :

Can Ship : Same Day (94 in stock)


Upper Housing Kit :

Catalog # 94-379-01, NYLON UPPER HOUSING

Price: $ 29.84

Qty :

Can Ship : Same Day (72 in stock)


Valve Assembly Kit :

Catalog # 94-390-06, EPDM VALVES (NSF) FOR

Price: $ 39.46

Qty :

Can Ship : Same Day (24 in stock)


Drive Assembly Kit :

Catalog # 94-385-31, CAM 2.5 DEG FOR

Price: $ 79.99

Qty :

Can Ship : Same Day (4 in stock)

Applications

Soil Extraction
