Model # 8020-822-299 - 115 VAC w/ Bypass

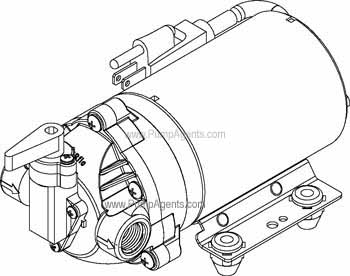

Shurflo Pump 8020-822-299

Shurflo # 8020-822-299

Shurflo catalog # 8020-822-299, 115 Volt AC w/ Power Cord, 1.1 GPM open flow, Externally adjustable bypass, Viton valves, 3/8" NPT Nylon (Female) Ports

Price : $204.02

Qty :

Same Day (3 in stock)



Features


Applications

PUMP DESIGN Positive Displacement 3 Chamber Diaphragm Pump CAM 3.0 Degree CHECK VALVE 1Way Operation Prevents Reverse Flow MOTOR Permanent Magnet, P/N 1115010, Thermally Protected VOLTAGE 115 VAC Nominal PRESSURE SWITCH Adjustable ShutOff Range 80100 PSI, Factory Set 100 PSI, Turn On 85 PSI / 5 PSI BYPASS 80 PSI LIQUID TEMPERATURE 180 Degrees Fahrenheit 82 Degrees Centigrade Max. PRIME SelfPriming Up To 12 Ft. Vertical,     Max. Inlet Pressure 30 PSI 2.1 Bar PORTS 3/8"18 NPT Female MATERIAL OF CONSTRUCTION     PLASTICS Nylon     VALVES Viton     DIAPHRAGM Santoprene     FASTENERS Zinc Plated Steel NET WEIGHT 4.9 Lbs 2.22 Kg DUTY CYCLE Intermittent TYPICAL APPLICATIONS Soil Extraction UL/CSA Recognized Component
