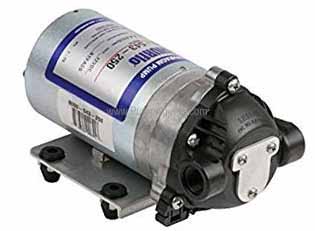

Model # 8020-601-250 - Diaphragm Pump

Shurflo Pump 8020-601-250

Shurflo # 8020-601-250

Shurflo catalog # 8020-601-250, Pump and Motor Unit, 115 Volts AC, 45 BP NBG 2.0R 1.2G 1SZC A

Price : $240.34

Qty :

3 Weeks (out of stock)



Features


Applications

MODEL NUMBER 8020601250 PUMP DESIGN Positive Displacement 3 Chamber Diaphragm Pump CAM 2.0 Degree MOTOR Permanent Magnet, P/N 1119400, Thermally Protected VOLTAGE 115 VAC Nominal PRESSURE SWITCH None LIQUID TEMPERATURE 180 Degrees Fahrenheit 82 Degrees Centigrade Max. PRIME SelfPriming Up To 10.5 Ft. Vertical,     Max. Inlet Pressure 30 PSI 2.1 Bar PORTS 3/8"18 NPT Female MATERIAL OF CONSTRUCTION     PLASTICS Nylon     VALVES Bunan     DIAPHRAGM Santoprene     FASTENERS Zinc Plated Steel NET WEIGHT 4.16 Lbs 1.9 Kg DUTY CYCLE Intermittent See Temperature Rise Chart TYPICAL APPLICATIONS General Industrial BYPASS 45 PSI
