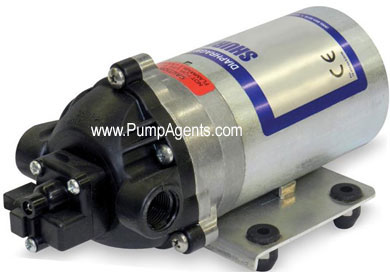

Model # 8007-543-836 - Diaphragm Pump

Shurflo Pump 8007-543-836

Shurflo # 8007-543-836

Shurflo catalog # 8007-543-836, Pump and Motor Unit, 12 Volts DC, 60 PSI P/V/S

Price : $166.39

Qty :

3 Weeks (out of stock)


Applications

MODEL NUMBER 8007543836 PUMP DESIGN Positive Displacement 3 Chamber Diaphragm Pump CHECK VALVE 1Way Operation Prevents Reverse Flow CAM 3.0 Degree MOTOR Permanent Magnet, P/N 1118402 Fuse Protected, On/Off Switch, Connector VOLTAGE 12 VDC Nominal PRESSURE SWITCH Adjustable ShutOff Range 4060 PSI   Factory Set 60 PSI, Turn On 45 PSI 5 PSI LIQUID TEMPERATURE 170 Degrees Fahrenheit 77 Degrees Centigrade Max. PRIME SelfPriming Up To 11 Ft. Vertical,     Max. Inlet Pressure 30 PSI 2.1 Bar PORTS 3/8"18 NPT Female MATERIAL OF CONSTRUCTION     PLASTICS Polypropylene     VALVES Viton     DIAPHRAGM Santoprene     FASTENERS Zinc Plated Steel NET WEIGHT 4.7 Lbs 2.13 Kg DUTY CYCLE Continuous See Temperature Rise Chart TYPICAL APPLICATIONS Agricultural Spraying
