Shurflo Pumps | Shurflo Pump Parts

Scroll down the page for prices & model #"s, or to order a specific model.

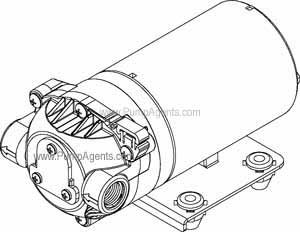

Model # 8006-543-236 - Diaphragm Pump

download_icon Product Data Sheet (Performance & Dimensions)
download_icon Operation & Maintenence Manual (O & M)

FEATURES
APPLICATIONS
MODEL NUMBER: 8006-543-236
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CHECK VALVE: (1-Way operation prevents reverse flow)
CAM: 3.0
MOTOR: 11-111-07 Permanent Magnet
VOLTAGE: 12 VDC Nominal
PRESSURE SWITCH: Adjustable Shut-off (Range 40-60 PSI)
Factory set @ 60 PSI, Turn on 45 5 PSI
LIQUID TEMPERATURE: 170 Degrees Fahrenheit (82 Degrees Centigrade)
PRIME: Self Priming up to 10 Ft. Vertical
PORTS: 3/8" -18 NPT Female
MATERIAL OF CONSTRUCTION:
    PLASTICS - Polypropylene
    VALVES - Viton
    DIAPHRAGM - Santoprene (Solid)
    FASTENERS - Stainless Steel
NET WEIGHT: 4.6 Lbs (2.08Kg)
DUTY CYCLE: Intermittent (See Temperature Rise Chart)
TYPICAL APPLICATIONS: Agricultural Spraying

Available Model # 8006-543-236 - Diaphragm Pump
Model # Description Price / ea. ORDER CAN SHIP
8006-543-236

download_icon Datasheet
Pump and Motor Unit, 12 Volts DC, 1.8 GPM open flow, Viton valves, Santoprene diaphragm, 60 PSI Demand Switch, 3/8" NPT-Female ports, Poly Housing $ 127.02 Qty. 3 Weeks
(out of stock)
