Shurflo Pumps | Shurflo Pump Parts

Scroll down the page for prices & model #"s, or to order a specific model.

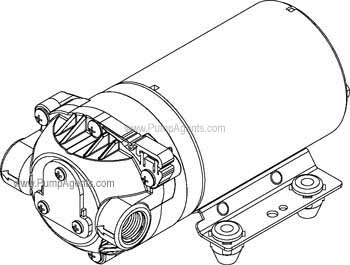

Model # 8006-142-220 - Diaphragm Pump

download_icon Product Data Sheet (Performance & Dimensions)
download_icon Operation & Maintenence Manual (O & M)

FEATURES
APPLICATIONS
MODEL NUMBER: 8006-142-220
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CAM: 2.5 Degree
MOTOR: Permanent Magnet, P/N 11-111-09
VOLTAGE: 12 VDC Nominal
PRESSURE SWITCH: None
LIQUID TEMPERATURE: 170 Degrees Fahrenheit (77 Degrees Centigrade) Max.
PRIME: Self-Priming Up To 9.0 Ft. Vertical,
Max. Inlet Press 30 PSI (2.1 Bar)
PORTS: 3/8"-18 NPT Female
MATERIAL OF CONSTRUCTION:
    PLASTICS - Polypropylene
    VALVES - Buna-n
    DIAPHRAGM - Santoprene
    FASTENERS - Zinc Plated Steel
NET WEIGHT: 4.6 Lbs (2.08 Kg)
DUTY CYCLE: Continuous (See Temperature Rise Chart)
TYPICAL APPLICATIONS: Agricultural Spraying / Soil Extraction
BYPASS: 60 PSI

Available Model # 8006-142-220 - Diaphragm Pump
Model # Description Price / ea. ORDER CAN SHIP
8006-142-220

download_icon Datasheet
Pump and Motor Unit, 12 Volts DC, Pump, WITH REVERSE HEAD $ 154.86 Qty. 3 Weeks
(out of stock)
