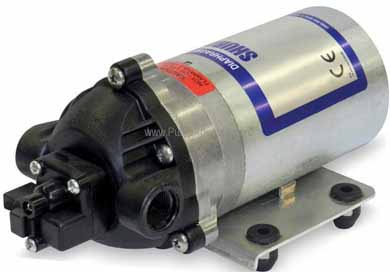

Shurflo # 8005-292-139 Diaphragm Pump with Automatic Switch - 12 VDC

Shurflo Pump 8005-292-139

Shurflo # 8005-292-139

Shurflo catalog # 8005-292-139, Diaphragm Pump with 12 Volt DC Motor and 45 PSI Automatic Demand Switch. Polypropylene Pump Body, EPDM Valves, Santoprene Diaphragm. Inlet Port is 1/2 Inch-14 NPT Male, Discharge Port is 1/2 Inch-14 NPT Male. Automatic Demand Pump. Pump has a 12 Volt DC Motor. 1.1 GPM open flow.

Price : $ 145.03

Qty :

4 Weeks (out of stock)

Click Here for PARTS



Product Information :

The 8000 series diaphragm pump is the most widely used Shurflo industrial pump. With spherically shaped valves and automatic demand switch, these pumps deliver consistent, dependable operation and priming. They can be mounted in any position, and are designed for easy maintenance. The 8000 series pumps are self priming. Horizontal and vertical prime vary depending on the fluid viscosity and pump configuration.


NOTE : This pump is rated for Intermittent Duty : "Intermittent Duty" is defined as; operated and/or frequently started within a period of time that would cause the motor to reach its maximum thermal limits. Once the maximum thermal limit is obtained, the motor must be allowed to return to ambient temperature before resuming operation.

Features :

Pump Body:
Polypropylene
Impeller:
EPDM
Shaft:
Santoprene
Port Size:
Inlet Port is 1/2 Inch-14 NPT Male, Discharge Port is 1/2 Inch-14 NPT Male.
Motor Specs :
12 Volt DC, Permanent Magnet, P/N 11-148-04, Thermally Protected. Wire: 12.5 Inch x 16AWG wires with Switch.

Parts and Accessories for Shurflo model 8005-292-139


Pressure Switch Kit :

Catalog # 94-375-13, SANTO SWITCH KIT 40PSI

Price: $ 37.52

Qty :

Can Ship : Same Day (3 in stock)


Check Valve Kit :

Catalog # 94-374-16, CHECK VALVE EPDM

Price: $ 17.01

Qty :

Can Ship : Same Day (94 in stock)


Upper Housing Kit :

Catalog # 94-378-00, POLYPRO UPPER HOUSING

Price: $ 29.84

Qty :

Can Ship : Same Day (5 in stock)


Valve Assembly Kit :

Catalog # 94-390-08, (I) EPDM/POLY VALVE ASSY

Price: $ 35.77

Qty :

Can Ship : Same Day (2 in stock)


Drive Assembly Kit :

Catalog # 94-385-31, CAM 2.5 DEG FOR

Price: $ 79.99

Qty :

Can Ship : Same Day (4 in stock)

Applications

Potable Water
