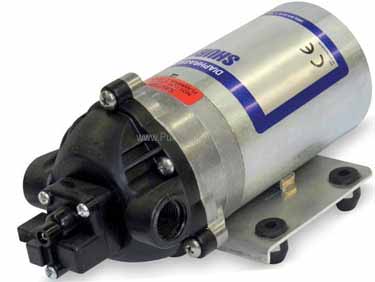

Shurflo # 8002-793-238 Diaphragm Pump with Automatic Switch - 12 VDC

Shurflo Pump 8002-793-238

Shurflo # 8002-793-238

Shurflo catalog # 8002-793-238, Diaphragm Pump with 12 Volt DC Motor and 100 PSI Automatic Demand Switch. Nylon Pump Body, EPDM Valves, Santoprene Diaphragm. Inlet Port is 3/8 Inch-18 NPT Female, Discharge Port is 3/8 Inch-18 NPT Female. 1.7 GPM open flow.

Price : $ 192.60

Qty :

Same Day (7 in stock)

Click Here for PARTS



Product Information :

SHURflo 8000 Series diaphragm pumps are Self-priming, feature Chemical-resistant materials and are designed for heavy-duty spraying and fluid transfer applications. Pump can run dry without damage and has a built-in check valve. The 8000 Series diaphragm pump is SHURflos most widely used agriculture pump. The unique conical valve design delivers high flow rates at maximum discharge pressures, making the 8000 Series the pump of choice for sprayers used on the farm or around the yard. These pumps deliver maximum performance in a wide range of applications.


NOTE : This pump is rated for Intermittent Duty : "Intermittent Duty" is defined as; operated and/or frequently started within a period of time that would cause the motor to reach its maximum thermal limits. Once the maximum thermal limit is obtained, the motor must be allowed to return to ambient temperature before resuming operation.

Features :

Pump Body:
Nylon
Impeller:
EPDM
Shaft:
Santoprene
Port Size:
Inlet Port is 3/8 Inch-18 NPT Female, Discharge Port is 3/8 Inch-18 NPT Female.
Motor Specs :
12 Volt DC, Permanent Magnet, P/N 11-111-00. Wire: 12.5 Inch x 16AWG wires with Switch.

Parts and Accessories for Shurflo model 8002-793-238


Pressure Switch Kit :

Catalog # 94-375-18, 80-100 PSI SWITCH

Price: $ 37.52

Qty :

Can Ship : Same Day (6 in stock)


Check Valve Kit :

Catalog # 94-374-16, CHECK VALVE EPDM

Price: $ 17.01

Qty :

Can Ship : Same Day (94 in stock)


Upper Housing Kit :

Catalog # 94-379-01, NYLON UPPER HOUSING

Price: $ 29.84

Qty :

Can Ship : Same Day (72 in stock)


Valve Assembly Kit :

Catalog # 94-390-06, EPDM VALVES (NSF) FOR

Price: $ 39.46

Qty :

Can Ship : Same Day (24 in stock)


Drive Assembly Kit :

Catalog # 94-385-32, CAM 3.0 DEG FOR 8000 &

Price: $ 79.99

Qty :

Can Ship : Same Day (15 in stock)

Applications

Industrial Spraying, Transfer
