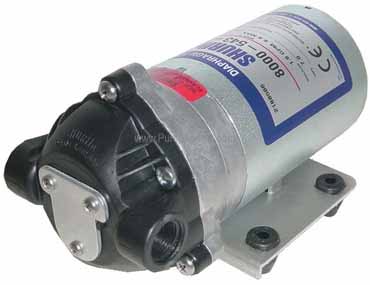

Shurflo # 8000-933-250 Diaphragm Pump with Bypass - 115 Volt AC

Shurflo Pump 8000-933-250

Shurflo # 8000-933-250

Shurflo catalog # 8000-933-250, Diaphragm Pump with 115 Volt AC Motor and 45 PSI Bypass. Nylon Pump Body, EPDM Valves, Santoprene Diaphragm. Inlet Port is 3/8 Inch-18 NPT Female, Discharge Port is 3/8 Inch-18 NPT Female. 1.4 GPM open flow.

Price : $ 184.70

Qty :

Same Day (5 in stock)

Click Here for PARTS



Product Information :

SHURflo 8000 Series diaphragm pumps are Self-priming, and feature Chemical-resistant materials. This pump has an internal bypass. Can run dry without damage. Shurflo 8000 Series internal bypass pumps are ideal for applications where an automatic demand switch is not desired. Pumps with bypass will continue to run without damage once the bypass pressure is reached. They incorporate a triple chamber design with Viton elastomers to withstand the toughest applications. Perfect for spot sprayers, foam markers and transfer applications where smooth, consistent flow is needed.


NOTE : This pump is rated for Intermittent Duty : "Intermittent Duty" is defined as; operated and/or frequently started within a period of time that would cause the motor to reach its maximum thermal limits. Once the maximum thermal limit is obtained, the motor must be allowed to return to ambient temperature before resuming operation.

Features :

Pump Body:
Nylon
Impeller:
EPDM
Shaft:
Santoprene
Port Size:
Inlet Port is 3/8 Inch-18 NPT Female, Discharge Port is 3/8 Inch-18 NPT Female.
Motor Specs :
115 Volt AC, Permanent Magnet, P/N 11-150-00, Thermally Protected. Wire: 19 Inch x 18AWG wires with Switch.

Parts and Accessories for Shurflo model 8000-933-250


Upper Housing Kit :

Catalog # 94-379-01, NYLON UPPER HOUSING

Price: $ 29.84

Qty :

Can Ship : Same Day (72 in stock)


Valve Assembly Kit :

Catalog # 94-391-06, EPDM VALVES 45 PSI BYPS

Price: $ 38.52

Qty :

Can Ship : Same Day (3 in stock)


Drive Assembly Kit :

Catalog # 94-385-32, CAM 3.0 DEG FOR 8000 &

Price: $ 79.99

Qty :

Can Ship : Same Day (15 in stock)

Applications

Soil Extraction
