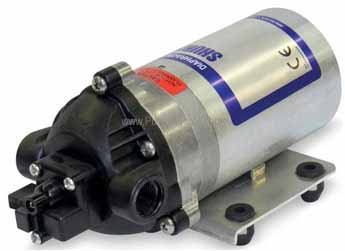

Model # 8000-883-238 - 36 VDC w/ Switch
Shurflo Pumps
| FEATURES
|
|
|
|
|
|
APPLICATIONS |
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CAM: 3.0 Degree
CHECK VALVE: (1-Way Operation) Prevents Reverse Flow
MOTOR: Permanent Magnet, P/N 11-179-00
VOLTAGE: 36 VDC Nominal
PRESSURE SWITCH: Adjustable Shut-Off (Range 80-100 PSI), Factory Set @ 100 PSI, Turn On 75 PSI +/- 5 PSI
LIQUID TEMPERATURE: 180 Degrees Fahrenheit (82 Degrees Centigrade) Max.
PRIME: Self-Priming Up To 10 Ft. Vertical,
Max. Inlet Pressure 30 PSI (2.1 Bar)
PORTS: 3/8"-18 NPT Female
MATERIAL OF CONSTRUCTION:
PLASTICS- Nylon
VALVES- Viton
DIAPHRAGM- Santoprene
FASTENERS- Zinc Plated Steel
NET WEIGHT: 4.85 Lbs (2.2 Kg)
DUTY CYCLE: Intermittent
TYPICAL APPLICATIONS: Soil Extraction
|
|
|
|
|
