Shurflo # 8000-853-238 Diaphragm Pump with Automatic Switch - 24 VDC

Shurflo Pump 8000-853-238

Shurflo # 8000-853-238

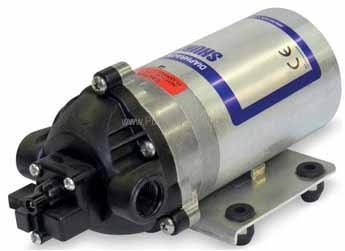

Shurflo catalog # 8000-853-238, Diaphragm Pump with 24 Volt DC Motor and 100 PSI Automatic Demand Switch. Nylon Pump Body, Viton Valves, Santoprene Diaphragm. Inlet Port is 3/8 Inch-18 NPT Female, Discharge Port is 3/8 Inch-18 NPT Female. 1.6 GPM open flow.

Price : $ 214.63

Qty :

Same Day (18 in stock)

Click Here for PARTS



Product Information :

The 8000 series diaphragm pump is the most widely used Shurflo industrial pump. With spherically shaped valves and automatic demand switch, these pumps deliver consistent, dependable operation and priming. They can be mounted in any position, and are designed for easy maintenance. The 8000 series pumps are self priming. Horizontal and vertical prime vary depending on the fluid viscosity and pump configuration.


NOTE : This pump is rated for Intermittent Duty : "Intermittent Duty" is defined as; operated and/or frequently started within a period of time that would cause the motor to reach its maximum thermal limits. Once the maximum thermal limit is obtained, the motor must be allowed to return to ambient temperature before resuming operation.

Features :

Pump Body:
Nylon
Impeller:
Viton
Shaft:
Santoprene
Port Size:
Inlet Port is 3/8 Inch-18 NPT Female, Discharge Port is 3/8 Inch-18 NPT Female.
Motor Specs :
24 Volt DC, Permanent Magnet, P/N 11-127-10. Wire: 12.5 Inch x 16AWG wires with Switch.

Parts and Accessories for Shurflo model 8000-853-238


Pressure Switch Kit :

Catalog # 94-375-15, 80-100 PSI SWITCH VITON

Price: $ 45.03

Qty :

Can Ship : Same Day (15 in stock)


Check Valve Kit :

Catalog # 94-374-10, CHECK VALVE 2 WAY VITON

Price: $ 17.01

Qty :

Can Ship : Same Day (6 in stock)


Upper Housing Kit :

Catalog # 94-379-01, NYLON UPPER HOUSING

Price: $ 29.84

Qty :

Can Ship : Same Day (72 in stock)


Valve Assembly Kit :

Catalog # 94-390-15, VALVE VITON NYLON

Price: $ 74.83

Qty :

Can Ship : Same Day (5 in stock)


Drive Assembly Kit :

Catalog # 94-385-32, CAM 3.0 DEG FOR 8000 &

Price: $ 79.99

Qty :

Can Ship : Same Day (15 in stock)

Applications

Soil Extraction
