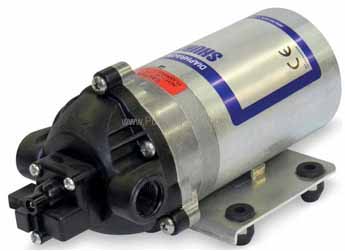

Model # 8000-813-288 - 115 VAC w/ Bypass
Shurflo Pumps
| FEATURES
|
|
|
|
|
|
APPLICATIONS |
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CAM: 3.0 Degree
CHECK VALVE: (1-Way Operation) Prevents Reverse Flow
MOTOR: Permanent Magnet, P/N 11-150-10, Thermally Protected
VOLTAGE: 115 VAC Nominal
PRESSURE SWITCH: Adjustable Shut-Off (Range 80-100 PSI), Factory Set @ 100 PSI, Turn On 85 PSI +/- 5 PSI
BYPASS: 80 PSI
LIQUID TEMPERATURE: 180 Degrees Fahrenheit (82 Degrees Centigrade) Max.
PRIME: Self-Priming Up To 12 Ft. Vertical,
Max. Inlet Pressure 30 PSI (2.1 Bar)
PORTS: 3/8"-18 NPT Female
MATERIAL OF CONSTRUCTION:
PLASTICS- Nylon
VALVES- Viton
DIAPHRAGM- Santoprene
FASTENERS- Zinc Plated Steel
NET WEIGHT: 4.9 Lbs (2.22 Kg)
DUTY CYCLE: Intermittent
TYPICAL APPLICATIONS: Soil Extraction - UL/CSA Recognized Component
|
|
|
|
