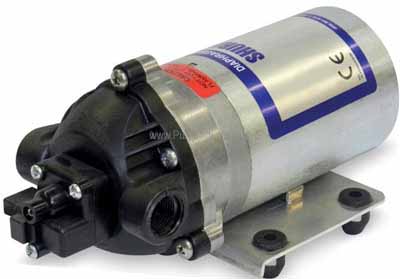

Shurflo # 8000-812-288 Diaphragm Pump with Bypass - 115 Volt AC

Shurflo Pump 8000-812-288

Shurflo # 8000-812-288

Shurflo catalog # 8000-812-288, Diaphragm Pump with 115 Volt AC Motor and 100 PSI. with 80 PSI bypass. Nylon Pump Body, Viton Valves, Viton (Switch), Santoprene (Main) Diaphragm. Inlet Port is 3/8 Inch-18 NPT, Female, Discharge Port is 3/8 Inch-18 NPT, Female. 1.3 GPM open flow.

Price : $ 249.57

Qty :

Same Day (4 in stock)

Click Here for PARTS



Product Information :

SHURflo 8000 Series diaphragm pumps are Self-priming, and feature Chemical-resistant materials. This pump has an internal bypass. Can run dry without damage. Shurflo 8000 Series internal bypass pumps are ideal for applications where an automatic demand switch is not desired. Pumps with bypass will continue to run without damage once the bypass pressure is reached. They incorporate a triple chamber design with Viton elastomers to withstand the toughest applications. Perfect for spot sprayers, foam markers and transfer applications where smooth, consistent flow is needed.


NOTE : This pump is rated for Intermittent Duty : "Intermittent Duty" is defined as; operated and/or frequently started within a period of time that would cause the motor to reach its maximum thermal limits. Once the maximum thermal limit is obtained, the motor must be allowed to return to ambient temperature before resuming operation.

Features :

Pump Body:
Nylon
Impeller:
Viton
Shaft:
Viton (Switch), Santoprene (Main)
Port Size:
Inlet Port is 3/8 Inch-18 NPT, Female, Discharge Port is 3/8 Inch-18 NPT, Female.
Motor Specs :
115 Volt AC, Permanent Magnet, P/N 11-150-10, Thermally Protected. Wire: 19 Inch x 18AWG wires with Switch.

Parts and Accessories for Shurflo model 8000-812-288


Pressure Switch Kit :

Catalog # 94-375-15, 80-100 PSI SWITCH VITON

Price: $ 45.03

Qty :

Can Ship : Same Day (15 in stock)


Check Valve Kit :

Catalog # 94-374-10, CHECK VALVE 2 WAY VITON

Price: $ 17.01

Qty :

Can Ship : Same Day (6 in stock)


Upper Housing Kit :

Catalog # 94-379-01, NYLON UPPER HOUSING

Price: $ 29.84

Qty :

Can Ship : Same Day (72 in stock)


Valve Assembly Kit :

Catalog # 94-391-25, VALVE KIT VITON NYLON

Price: $ 74.83

Qty :

Can Ship : Same Day (4 in stock)


Drive Assembly Kit :

Catalog # 94-385-31, CAM 2.5 DEG FOR

Price: $ 79.99

Qty :

Can Ship : Same Day (4 in stock)

Applications

Soil Extraction
