Shurflo 8000-783-238 Extraction Pump with Switch

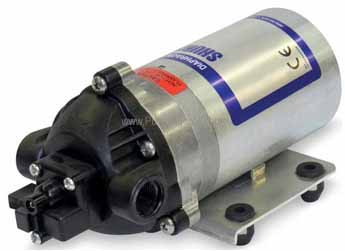

Shurflo # 8000-783-238 Diaphragm Pump with Automatic Switch - 36 VDC

Shurflo # 8000-783-238

Shurflo catalog # 8000-783-238, Diaphragm Pump with 36 Volt DC Motor and 100 PSI Automatic Demand Switch. Nylon Pump Body, EPDM Valves, Santoprene Diaphragm. Inlet Port is 3/8 Inch - 18 NPT Female, Discharge Port is 3/8 Inch - 18 NPT Female. 1.6 GPM open flow.

Price : $ 572.90

Click Here for PARTS

Product Information :

Parts Page (click here)

Product Manual PDF (view)

The 8000 series diaphragm pump is the most widely used Shurflo industrial pump. With spherically shaped valves and automatic demand switch, these pumps deliver consistent, dependable operation and priming. They can be mounted in any position, and are designed for easy maintenance. The 8000 series pumps are self priming. Horizontal and vertical prime vary depending on the fluid viscosity and pump configuration.

Product Specs :

Positive Displacement 3 Chamber Diaphragm Pump

Pressure Switch: Adjustable Shut-Off (Range 80-100 PSI). Factory Set at 100 PSI shut off, Turn On 85 PSI

Bypass: 80 PSI Max.

Check Valve: (1-Way Operation) Prevents Reverse Flow

Liquid Temperature: 180 Degrees Fahrenheit (82 Degrees Centigrade) Max.

Prime: Self-Priming Up To 12 Ft. Vertical

Weight: 5.1 Lbs (2.3 Kg)

Duty Cycle: Continuous

Features :

Pump Body:

Nylon

Impeller:

EPDM

Shaft:

Santoprene

Port Size:

Inlet Port is 3/8 Inch - 18 NPT Female, Discharge Port is 3/8 Inch - 18 NPT Female.

Motor Specs :

36 Volt DC, Permanent Magnet, P/N 11-119-05. Wire: 12.5 Inch x 16AWG wires with Switch.

Shurflo # 8000-783-238 Diaphragm Pump with Automatic Switch - 36 VDC
