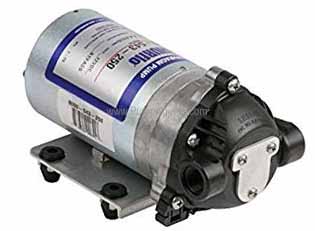

Shurflo # 8000-643-210 Diaphragm Pump with Bypass - 12 VDC

Shurflo Pump 8000-643-210

Shurflo # 8000-643-210

Shurflo catalog # 8000-643-210, Diaphragm Pump with 12 Volt DC Motor and 35 PSI Bypass. Nylon Pump Body, Buna-n Valves, Geolast (Main), Buna-n (Switch Chamber) Diaphragm. Inlet Port is 3/8 Inch-18 NPT Female, Discharge Port is 3/8 Inch-18 NPT Female. 1.7 GPM open flow.

Price : $ 164.03

Qty :

Same Day (25 in stock)

Click Here for PARTS



Product Information :

SHURflo 8000 Series diaphragm pumps are Self-priming, and feature Chemical-resistant materials. This pump has an internal bypass. Can run dry without damage. Shurflo 8000 Series internal bypass pumps are ideal for applications where an automatic demand switch is not desired. Pumps with bypass will continue to run without damage once the bypass pressure is reached. They incorporate a triple chamber design with Viton elastomers to withstand the toughest applications. Perfect for spot sprayers, foam markers and transfer applications where smooth, consistent flow is needed.

BYPASS : A bypass pump may be used in application that would normally induce frequent start/stop of the motor, and thereby create a potential for overheating. Models equipped with an internal bypass are designed to pump at high pressure while at low flow rates. Bypass models equipped with a switch may operate for several seconds even though the discharge side has been closed off. Models equipped with a bypass only will continue to run until power is turned OFF.

Features :

Pump Body:
Nylon
Impeller:
Buna-n
Shaft:
Geolast (Main), Buna-n (Switch Chamber)
Port Size:
Inlet Port is 3/8 Inch-18 NPT Female, Discharge Port is 3/8 Inch-18 NPT Female.
Motor Specs :
12 Volt DC, Permanent Magnet, P/N 11-173-00. Wire: 12.75 Inch x 16AWG wires with Switch.

Parts and Accessories for Shurflo model 8000-643-210


Upper Housing Kit :

Catalog # 94-379-01, NYLON UPPER HOUSING

Price: $ 29.84

Qty :

Can Ship : Same Day (72 in stock)


Valve Assembly Kit :

Catalog # 94-391-12, VALVE BYPASS BUNA

Price: $ 42.28

Qty :

Can Ship : Same Day (2 in stock)

Applications

Transmission Fluid Circulation
