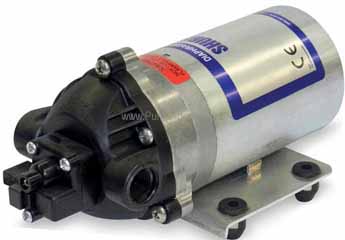

Model # 8000-633-236 - 115 VAC w/ Switch
Shurflo Pumps
| FEATURES
|
|
|
|
|
|
APPLICATIONS |
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CAM: 2.5 Degree
CHECK VALVE: (1-Way Operation) Prevents Reverse Flow
MOTOR: Permanent Magnet, P/N 11-150-00, Thermally Protected
VOLTAGE: 115 VAC Nominal
PRESSURE SWITCH: Adjustable Shut-Off (Range 40-60 PSI), Factory Set @ 60 PSI, Turn On 45 PSI +/- 5 PSI
LIQUID TEMPERATURE: 170 Degrees Fahrenheit (77 Degrees Centigrade) Max.
PRIME: Self-Priming Up To 8 Ft. Vertical,
Max. Inlet Pressure 30 PSI (2.1 Bar)
PORTS: 3/8"-18 NPT Female
MATERIAL OF CONSTRUCTION:
PLASTICS- Nylon
VALVES- Buna
DIAPHRAGM- Geolast
FASTENERS- Zinc Plated Steel
NET WEIGHT: 3.9 Lbs (1.77 Kg)
DUTY CYCLE: Intermittent
TYPICAL APPLICATIONS: Automotive Fluid Handling - UL/CSA Recognized Component
|
|
|
|
|
