Shurflo Pumps | Shurflo Pump Parts

Scroll down the page for prices & model #"s, or to order a specific model.

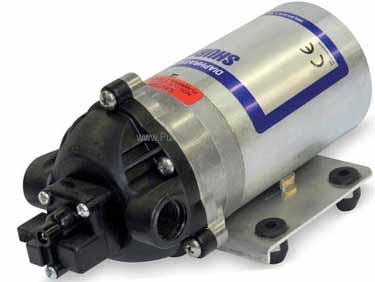

Model # 8000-542-296 - Diaphragm Pump

download_icon Product Data Sheet (Performance & Dimensions)
download_icon Operation & Maintenence Manual (O & M)

FEATURES
APPLICATIONS
MODEL NUMBER: 8000-542-296
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CHECK VALVE: (1-Way Operation) Prevents Reverse Flow
CAM: 2.5 Degree
MOTOR: Permanent Magnet, P/N 11-111-00
VOLTAGE: 12 VDC Nominal
PRESSURE SWITCH: Adjustable Shut-Off (Range 40-60 PSI)
  Factory Set @ 60 PSI, Turn On 45 PSI 5 PSI
LIQUID TEMPERATURE: 170 Degrees Fahrenheit (77 Degrees Centigrade) Max.
PRIME: Self-Priming Up To 9 Ft. Vertical,
    Max. Inlet Pressure 30 PSI (2.1 Bar)
PORTS: 3/8"-18 NPT Female
MATERIAL OF CONSTRUCTION:
    PLASTICS - Polypropylene
    VALVES - Viton
    DIAPHRAGM - Santoprene
    FASTENERS - Zinc Plated Steel
NET WEIGHT: 4.6 Lbs (2.08 Kg)
DUTY CYCLE: Continuous (See Temperature Rise Chart)
TYPICAL APPLICATIONS: Agricultural Spraying
BYPASS: 60 PSI Springs

Available Model # 8000-542-296 - Diaphragm Pump
Model # Description Price / ea. ORDER CAN SHIP
8000-542-296

download_icon Datasheet
Pump and Motor Unit, 12 Volts DC, 1.3 GPM open flow, Viton valves, Santoprene diaphragm, 60 PSI Internal Bypass, with 60 PSI Demand Switch, 3/8" NPT-Female ports, Poly Housing $ 123.98 Qty. 3 Weeks
(out of stock)
