Model # 8000-541-236 - 12 VDC w/ Switch

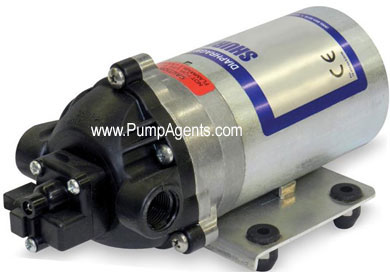

Shurflo Pump 8000-541-236

Shurflo # 8000-541-236

Shurflo catalog # 8000-541-236, 12 VDC, 0.9 GPM open flow, 60 PSI Demand switch, Viton valves, Santoprene diaphragm. 3/8" NPT Poly (Female) Ports

Price : $ 98.81

Qty :

Same Day (21 in stock)

Click Here for PARTS



Product Information :


Applications

PUMP DESIGN Positive Displacement 3 Chamber Diaphragm Pump CHECK VALVE 1Way Operation Prevents Reverse Flow CAM 2.0 Degree MOTOR Permanent Magnet, P/N 1114804, Thermally Protected VOLTAGE 12 VDC Nominal PRESSURE SWITCH Adjustable ShutOff Range 4060 PSI, Factory Set 60 PSI, Turn On 45 PSI / 5 PSI LIQUID TEMPERATURE 170 Degrees Fahrenheit 77 Degrees Centigrade Max. PRIME SelfPriming Up To 11 Ft. Vertical,     Max. Inlet Pressure 30 PSI 2.1 Bar PORTS 3/8"18 NPT Female MATERIAL OF CONSTRUCTION     PLASTICS Polypropylene     VALVES Viton     DIAPHRAGM Santoprene     FASTENERS Zinc Plated Steel NET WEIGHT 3.8 Lbs 1.72 Kg DUTY CYCLE Intermittent TYPICAL APPLICATIONS Agricultural Spraying
