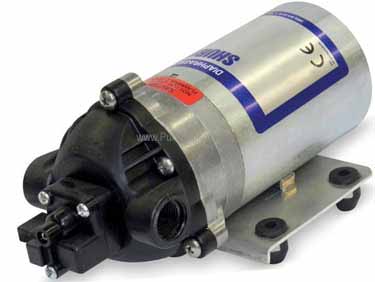

Shurflo # 8000-443-236 Diaphragm Pump with Automatic Switch - 12 VDC

Shurflo Pump 8000-443-236

Shurflo # 8000-443-236

Shurflo catalog # 8000-443-236, Diaphragm Pump with 12 Volt DC Motor and 60 PSI Automatic Demand Switch. Polypropylene Pump Body, EPDM Valves, Santoprene Diaphragm. Inlet Port is 3/8 Inch -18 NPT Female, Discharge Port is 3/8 Inch -18 NPT Female. 1.8 GPM open flow.

Price : $ 147.69

Qty :

Same Day (2 in stock)

Click Here for PARTS



Product Information :

The 8000 series diaphragm pump is the most widely used Shurflo industrial pump. With spherically shaped valves and automatic demand switch, these pumps deliver consistent, dependable operation and priming. They can be mounted in any position, and are designed for easy maintenance. The 8000 series pumps are self priming. Horizontal and vertical prime vary depending on the fluid viscosity and pump configuration.

Product Specs :

Positive Displacement 3 Chamber Diaphragm Pump

Pressure Switch: Adjustable Shut-Off (Range 40-60 PSI). Factory Set at 60 PSI shut off, Turn On 45PSI

Bypass: 80 PSI

Check Valve: (1-Way Operation) Prevents Reverse Flow

Liquid Temperature: 170 Degrees Fahrenheit (77 Degrees Centigrade) Max.

Prime: Self-Priming Up To 12 Ft. Vertical

Weight: 4.56 Lbs (2.07Kg)

Duty Cycle: Continuous

Features :

Pump Body:
Polypropylene
Impeller:
EPDM
Shaft:
Santoprene
Port Size:
Inlet Port is 3/8 Inch -18 NPT Female, Discharge Port is 3/8 Inch -18 NPT Female.
Motor Specs :
12 Volt DC, Permanent Magnet, P/N 11-111-00. Wire: 12.5 Inch x 16AWG wires with Switch.

Parts and Accessories for Shurflo model 8000-443-236


Pressure Switch Kit :

Catalog # 94-375-06, 40-60 PSI SWITCH

Price: $ 41.65

Qty :

Can Ship : Same Day (3 in stock)


Check Valve Kit :

Catalog # 94-374-16, CHECK VALVE EPDM

Price: $ 17.01

Qty :

Can Ship : Same Day (94 in stock)


Upper Housing Kit :

Catalog # 94-379-00, POLYPRO UPPER HOUSING

Price: $ 29.84

Qty :

Can Ship : Same Day (14 in stock)


Valve Assembly Kit :

Catalog # 94-390-08, (I) EPDM/POLY VALVE ASSY

Price: $ 35.77

Qty :

Can Ship : Same Day (2 in stock)


Drive Assembly Kit :

Catalog # 94-385-32, CAM 3.0 DEG FOR 8000 &

Price: $ 79.99

Qty :

Can Ship : Same Day (15 in stock)

Applications

Water Delivery
